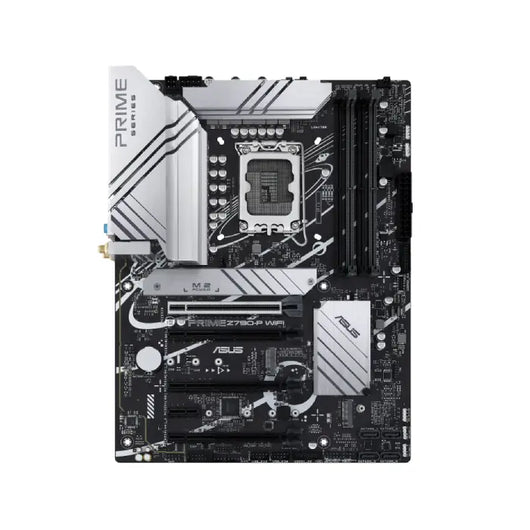

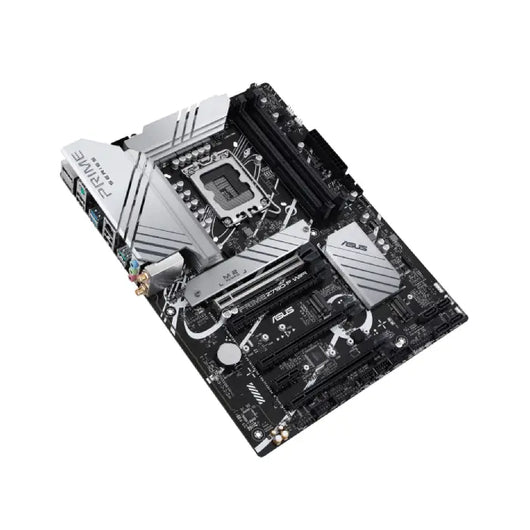

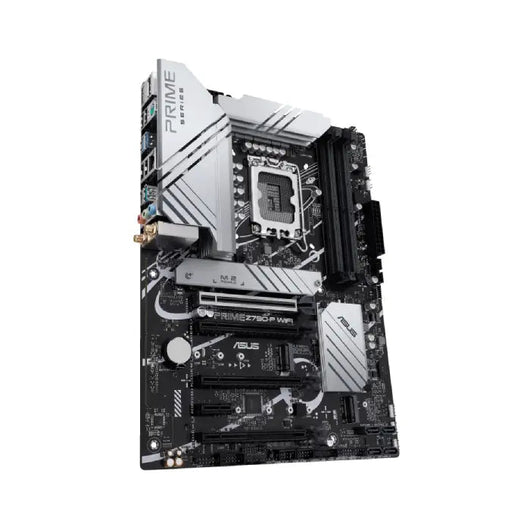

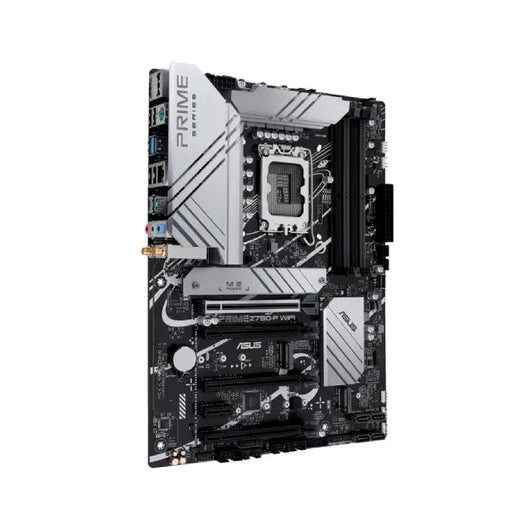

ASUS PRIME Z790-A WIFI LGA 1700 ATX Motherboard 4 x DDR5 Wi-Fi 6E 288-Pin - 90MB1CJ0-M1EAY0
Hurry up! Sale Ends in
Asus PRIME Z790-P WIFI DDR5 LGA 1700 Motherboard - Technical Specifications
| Brand | Asus |
| Model | PRIME Z790-P WIFI |
| CPU |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® Z790 Chipset |
| Memory |
4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics |
1 x DisplayPort 1 x HDMI port |
| Expansion Slots |
Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless / Bluetooth |
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2 |
| USB |

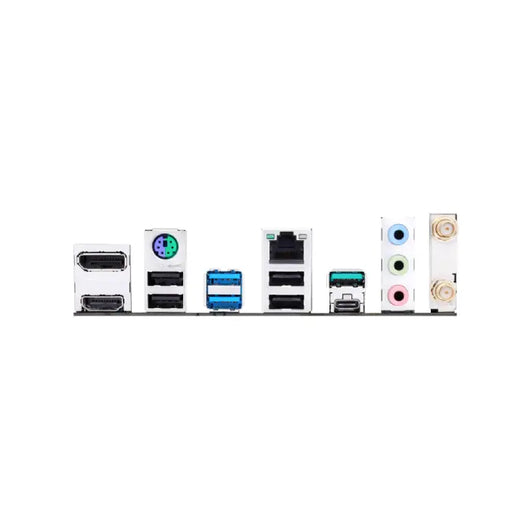

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Accessories |

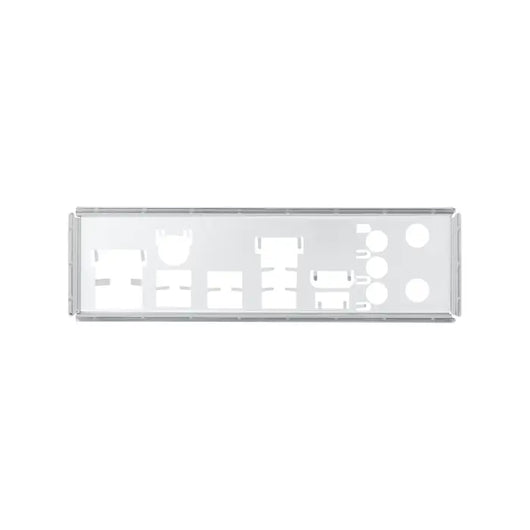

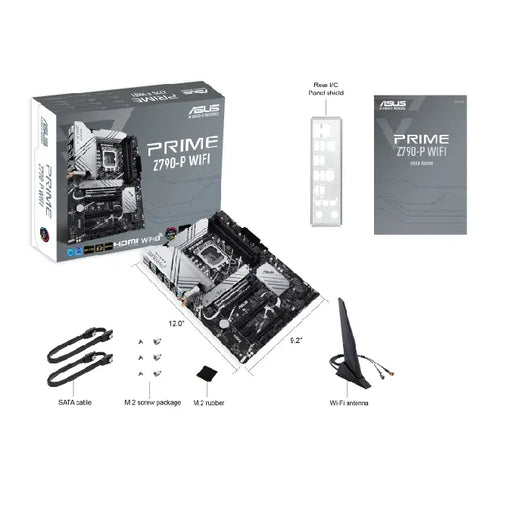

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD Documentation 1 x User guide |
| Operating system | Windows® 11, Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
Master Your Build: ASUS PRIME Z790-A WIFI LGA 1700 Motherboard 🚀
The ASUS PRIME Z790-A WIFI is a high-performance ATX motherboard designed to unlock the full potential of Intel® Core™ processors (14th, 13th, and 12th Gen). Combining a sleek, futuristic silver-and-white aesthetic with pro-grade power delivery and cooling, this motherboard is the ideal foundation for enthusiasts and creators building a cutting-edge PC.
Next-Gen Speed and Connectivity: Experience the future of memory with 4 x DDR5 DIMM slots, offering massive bandwidth and enhanced stability for multitasking and gaming. With a PCIe 5.0 x16 slot, your system is ready for the next generation of high-end graphics cards. Connectivity is handled by ultra-fast Wi-Fi 6E and 2.5 Gb Ethernet, ensuring low-latency online gaming and rapid file transfers.
Advanced Cooling and Power: Engineered for stability, the PRIME Z790-A features a robust 16+1 DrMOS power stage design to handle high-wattage CPUs. The comprehensive cooling solution includes large VRM heatsinks, M.2 heatsinks for your NVMe drives, and AI Cooling II technology to balance acoustics and thermals automatically.
Key Features:
- Socket: Intel® LGA 1700 for 14th, 13th, and 12th Gen CPUs.
- Memory: Supports up to 192GB of DDR5 RAM.
- Storage: 4 x M.2 slots (PCIe 4.0) for lightning-fast storage.
- Wireless: Integrated Wi-Fi 6E and Bluetooth® 5.3.
- I/O Ports: USB 3.2 Gen 2x2 Type-C®, DisplayPort, and HDMI®.
- Smart Features: AI Overclocking, AI Cooling II, and Two-Way AI Noise Cancelation.
Build a sophisticated, high-performance system—shop the ASUS PRIME Z790-A WIFI today!
