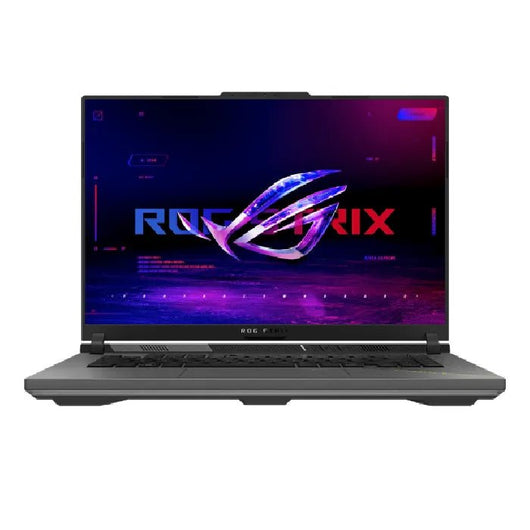

Asus ROG Strix G16 G614FR-G4032W Gaming Laptop AMD R9 9955HX Gray 90NR0L47-M001N0
Asus ROG Strix G16 G614FR-G4032W, Gaming Laptop - Technical Specifications
| Brand | Asus |
| Model Name | ROG Strix G16 G614FR-G4032W |
|
Model Number |
90NR0L47-M001N0 |
|
Processor |
AMD Ryzen™ 9 9955HX Processor |
|
Memory |
16GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC Total System Memory: DDR5 16GB Memory Slot: 2x SO-DIMM slots Memory Max.: 64GB |
|
Graphics |
NVIDIA® GeForce RTX™ 5070 Laptop GPU ROG Boost: 1475MHz at 115W (1425MHz Boost Clock+50MHz OC, 100W+15W Dynamic Boost) 8GB GDDR7 |
|
Storage |
1TB PCIe® 4.0 NVMe™ M.2 SSD |
|
Display |
Panel Size:16-inch Resolution: FHD+ (1920 x 1200, WUXGA) 16:10 aspect ratio Refresh Rate: 165Hz Response Time (G2G): 3ms Viewing Angle: 170 Panel Tech: IPS-level Brightness: 300nits Contrast Ratio: 1000:1 DCI-P3 %: 100% Anti-glare display ROG intelligent cooling Support Dolby Vision HDR |
|
Touch Screen |
No |
|

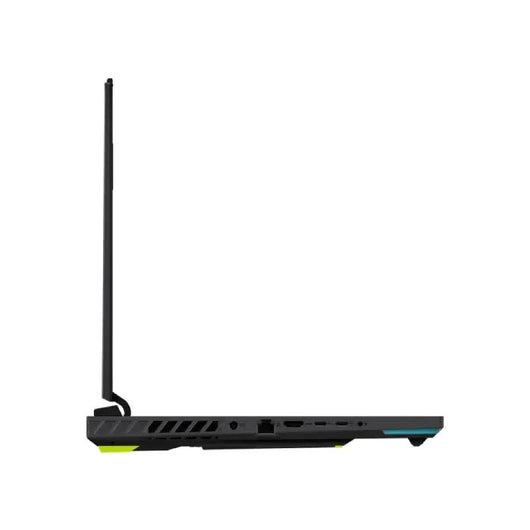

I/O Ports |

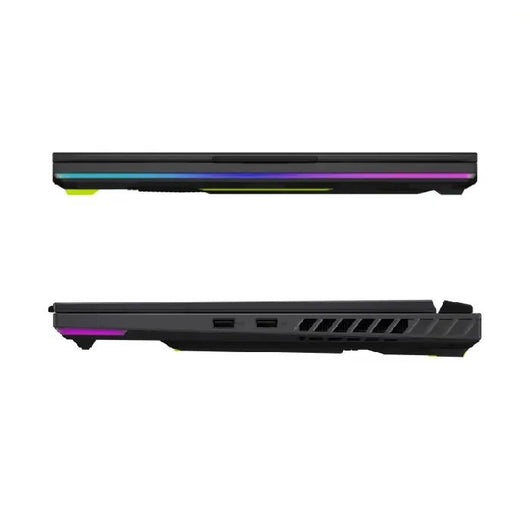

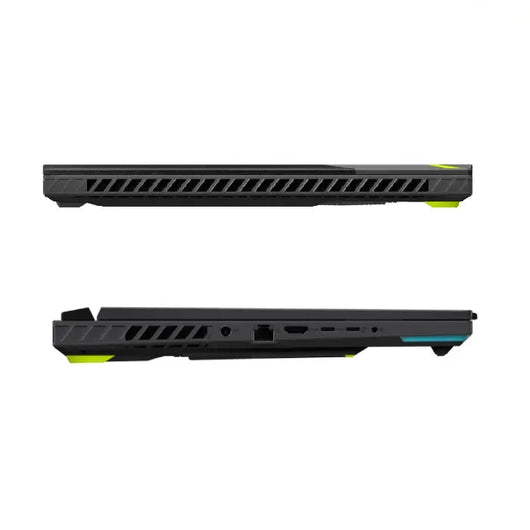

1x RJ45 LAN port 1x Type-C USB 4 with support for DisplayPort™ / G-SYNC (data speed up to 40Gbps) 1x Type-C USB 4 with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 40Gbps) 2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps) 1x HDMI 2.1 FRL |
|
Audio |
1x 3.5mm Combo Audio Jack AI noise-canceling technology Dolby Atmos Hi-Res certification (for headphone) Smart Amp Technology |
| Speakers | 2-speaker system with Smart Amplifier Technology |
| Microphone | Built-in array microphone |
|
Keyboard and Touchpad |

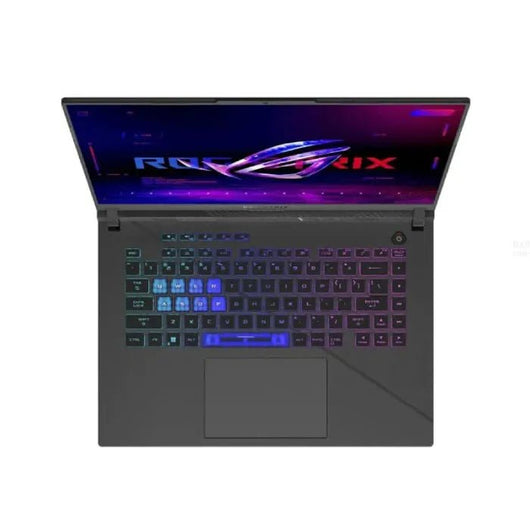

Backlit Chiclet Keyboard 4-Zone RGB With Copilot key Touchpad |
|
Camera |
1080P FHD camera |
|
Networks / Wireless |
LAN: 10/100/1000 Mbps Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card |
|
Operating System |
Windows 11 Home |
|
Battery |
90WHrs, 4S1P, 4-cell Li-ion |
|
Power |
ø6.0, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100~240C AC 50/60Hz universal |
|
Aura Sync |
Yes |
|
Security |
BIOS Administrator Password and User Password Protection Trusted Platform Module (Firmware TPM) McAfee® 30 days free trial |
|
Weight |
2.50 Kg (5.51 lbs) |
|
Dimensions |
35.4 x 26.4 x 2.26 ~ 3.04 cm (13.94" x 10.39" x 0.89" ~ 1.20") |
| Color | Eclipse Gray |

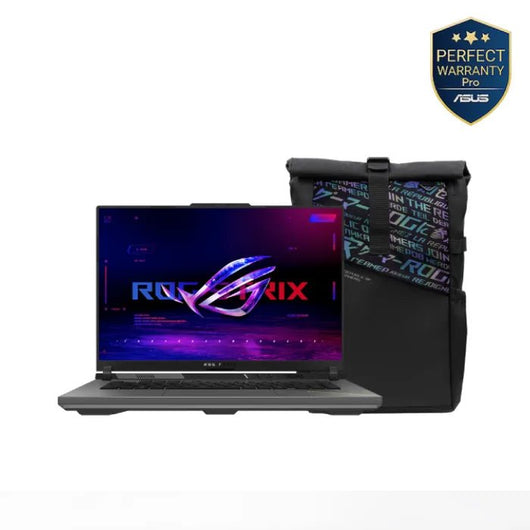

| Included in the Box | ROG backpack |
The Asus ROG Strix G16 (G614FR-G4032W) is a high-performance gaming laptop engineered for esports dominance and demanding creative work, delivering a blend of cutting-edge components and an advanced cooling system in a sleek, competitive package.
Core Power and Performance
At its heart, the Strix G16 is built to obliterate performance bottlenecks. It is powered by the formidable AMD Ryzen™ 9 9955HX Processor, featuring a 16-core, 32-thread architecture for exceptional multi-tasking and high-speed gaming. This is paired with an ultra-powerful NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU with 12GB of GDDR7 VRAM, capable of achieving a maximum TGP of up to 140W with Dynamic Boost. This combination ensures phenomenal frame rates in the latest AAA titles and accelerates rendering and editing workflows.
The system is equipped with 32GB of blazing-fast 5600MHz DDR5 RAM (in a dual-channel configuration, expandable up to 64GB) and a 1TB PCIe 4.0 NVMe M.2 SSD, providing lightning-fast boot times, near-instant game loading, and seamless application performance.
ROG Intelligent Cooling
To sustain peak performance during intense gaming sessions, the Strix G16 features the comprehensive ROG Intelligent Cooling system. Key technologies include:
- Tri-Fan Technology: A unique three-fan setup to increase airflow efficiency.

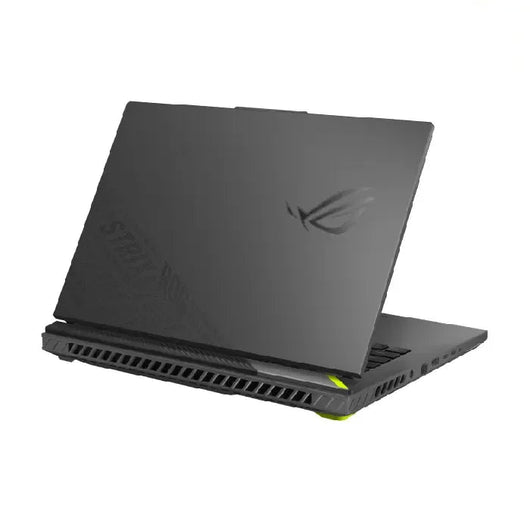

- Full-Width Heatsink: A massive heatsink that covers the entire rear of the machine for superior heat dissipation.
- Conductonaut Extreme Liquid Metal: Applied to the GPU (and often the CPU in this series) to significantly improve heat transfer compared to traditional thermal paste, leading to lower temperatures and extended component lifespan.
- Full-Surround Vents: Redesigned exhaust vents maximize hot air movement out of the chassis.
ROG Nebula Display: See Every Detail
Experience games with stunning clarity and speed on the 16-inch ROG Nebula Display. This premium panel features a WQXGA (2560 x 1600) resolution with a crisp 16:10 aspect ratio, a hyper-smooth 240Hz refresh rate, and a 3ms response time (GtG). The display is 100% DCI-P3 color gamut certified, Pantone Validated, and boasts 500 nits of brightness, making it ideal for both competitive gaming (thanks to G-Sync support and high refresh) and professional content creation.
Design and Usability

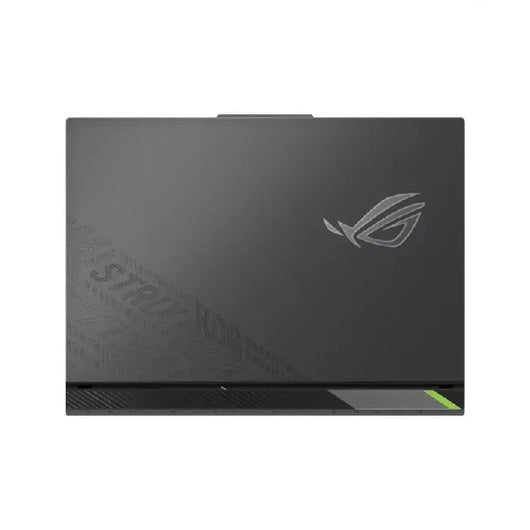

The laptop's aesthetic is characterized by its signature Eclipse Gray (or sometimes listed as Volt Green for this part number in some regions) finish, giving it a modern and aggressive look. The Backlit Chiclet Keyboard features Per-Key RGB lighting for deep customization via Aura Sync, alongside Overstroke technology for highly responsive input. Connectivity is modern and robust, including USB4 Type-C ports (with DisplayPort, G-Sync, and Power Delivery support), USB 3.2 Gen 2 Type-A, and HDMI 2.1 FRL. The device runs on Windows 11 Home and includes a 90WHrs battery for extended use on the go.
