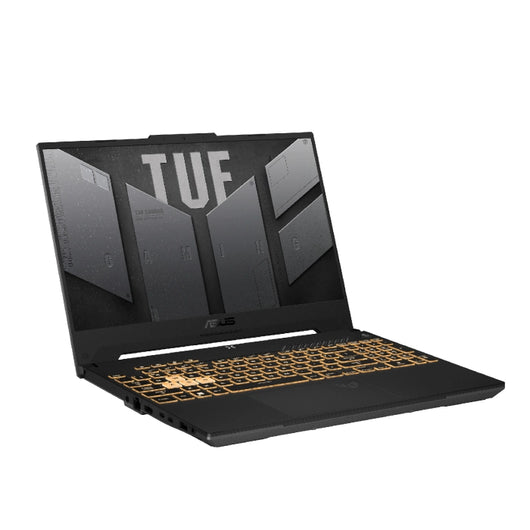

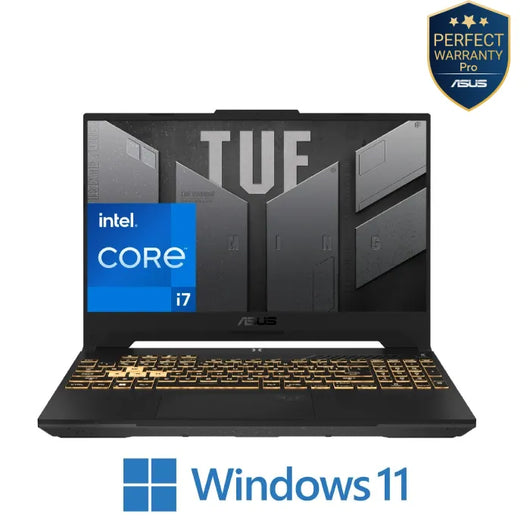

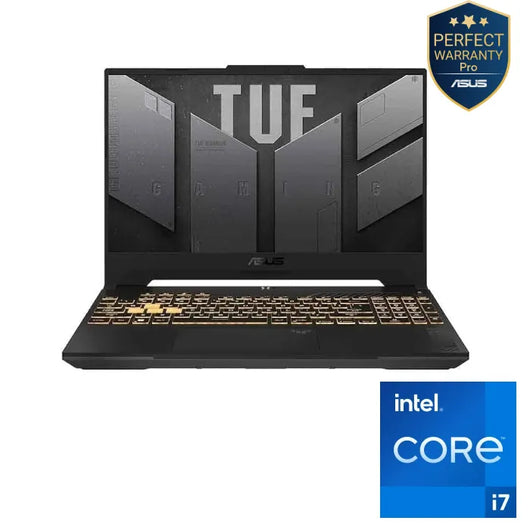

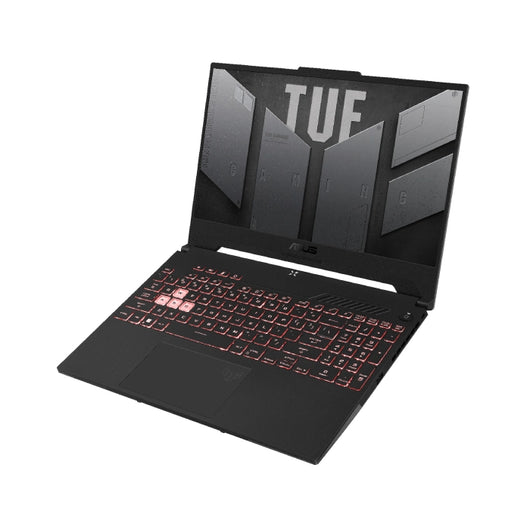

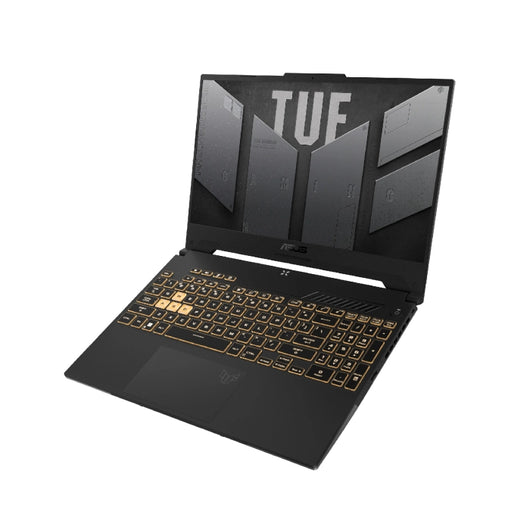

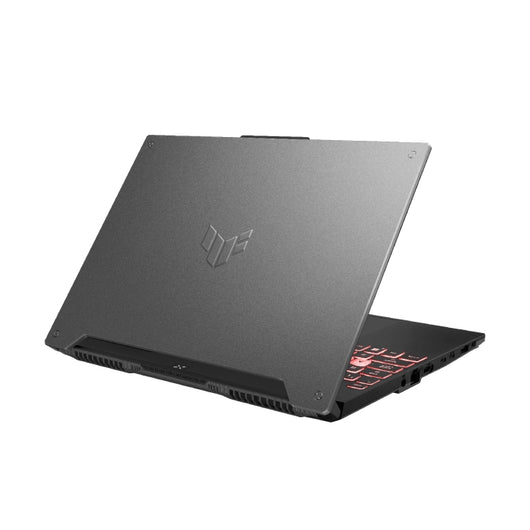

Gaming Laptop ASUS TUF Gaming F15 FX507VI-LP066W - Technical Specifications
| Brand | ASUS TUF Gaming F15 FX507VI-LP066W |
| Model | 90NR0FH8-M002Y0 |
| Color | Jaeger Gray |
| Processor |
13th Gen Intel® Core™ i7-13620H Processor 2.4 GHz (24M Cache, up to 4.9 GHz, 10 cores: 6 P-cores and 4 E-cores) |
| Memory |
8GB DDR5-4800 SO-DIMM *2 RAM 2x SO-DIMM slots Max. Memory: 32GB Support dual channel memory |
| Storage | 1TB PCIe® 4.0 NVMe™ M.2 SSD |
| Display |
Size: 15.6-inch Resolution:FHD (1920 x 1080) 16:9 Refresh Rate:144Hz Viewing Angle:85/85/85/85 Panel Tech:Value IPS-level Brightness:250nits Contrast Ratio:1000:1 NTSC %:72% SRGB %:100% Adobe %:75.35% Glare:Anti-glare display G-Sync Technology |
| Graphics |
NVIDIA® GeForce RTX™ 4070 Laptop GPU 2225MHz* at 140W (2175MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost) 8GB GDDR6 |
| I/O Ports |
1x RJ45 LAN port 1x Thunderbolt™ 4 support DisplayPort™ 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC 2x USB 3.2 Gen 1 Type-A |
| Display output | 1x HDMI 2.1 FRL |
| Aura Sync | Yes |
| Camera | 720P HD camera |
| Microphone | Built-in array microphone |
| Keyboard |
Backlit Chiclet Keyboard 1-Zone RGB Touchpad |
| Speakers | 2-speaker system |
| Audio |
1x 3.5mm Combo Audio Jack Built-in array microphone |
| Audio Technology |
AI noise-canceling technology Dolby Atmos Hi-Res certification (for headphone) Support Microsoft Cortana near field/far field |
| Network/Wireless |
LAN: 10/100/1000 Mbps Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 Wireless Card Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.1 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Operating system | Windows 11 Home |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion Recharge from 0-50% in 30 minutes |
| Power |
ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
| Security |
BIOS Administrator Password and User Password Protection Kensington Security Slot™ Trusted Platform Module (Firmware TPM) |
| Antivirus | McAfee® 30 days free trial |
| Dimension (W x D x H) |
35.4 x 25.1 x 2.24 ~ 2.49 cm (13.94" x 9.88" x 0.88" ~ 0.98") |
| Weight | 2.20 Kg (4.85 lbs) |
