Description

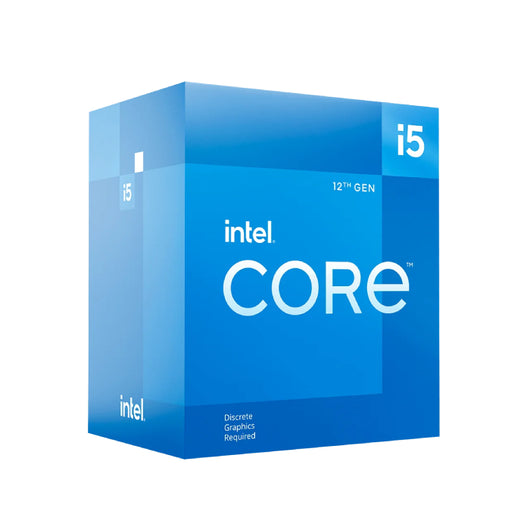

Intel® Core™ i5-12400 BOX Desktop Processor - Technical Specifications
| Brand | Intel |
| Model | Core™ i5-12400 |
| CPU Specifications | |
| Total Cores | 6 |
| Of Performance-cores | 6 |
| Of Efficient-cores | 0 |
| Total Threads | 12 |
| Max Turbo Frequency | 4.40 GHz |
| Performance-core Max Turbo Frequency | 4.40 GHz |
| Performance-core Base Frequency | 2.50 GHz |
| Cache | 18 MB Intel® Smart Cache |
| Total L2 Cache | 7.5 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 117 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types |
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
