LAPTOP-ASUS-ZENBOOK DUO-UX8406CA-PZ005W-C Ultra 9-285H-32G-2T SSD-INTEL ARC GRAPHICS-3K OLED 120HZ-14 INCH-Windows 11-Inkwell Grey / 90NB14X1-M003F0
Asus Zenbook DUO UX8406CA-PZ005W Laptop - AI Laptop - Gray - Technical Specifications
| Brand | Asus |
| Zenbook DUO UX8406CA-PZ005W | |
|
Model |
90NB14X1-M003F0 |
|
Processor Core |
Intel® Core™ Ultra 9 Processor 285H |
|
Processor Cache |
2.9 GHz (24MB Cache, up to 5.4 GHz, 16 cores, 16 Threads) |
| Neural Processor | Intel® AI Boost NPU up to 13TOPS |
|
RAM Type |
LPDDR5X |
|
RAM Size |
32GB LPDDR5X on board Max Total system memory up to:32GB |
|
Hard Disk Capacity |
2TB M.2 NVMe™ PCIe® 4.0 SSD |
|
Graphics Card |
Intel® Arc™ Graphics |
|
Display Resolution |
3K (2880 x 1800) OLED 16:10 aspect ratio, 0.2ms response time, 120Hz refresh rate, 400nits, 500nits HDR peak brightness, 100% DCI-P3 color gamut, 1,000,000:1, VESA CERTIFIED Display HDR True Black 500, 1.07 billion colors, PANTONE Validated, Glossy display, 70% less harmful blue light, Touch screen, (Screen-to-body ratio)91%, With stylus support |
|
Display Size |
14.0-inch |
|
TouchScreen |
Yes |
|
I/O Ports |

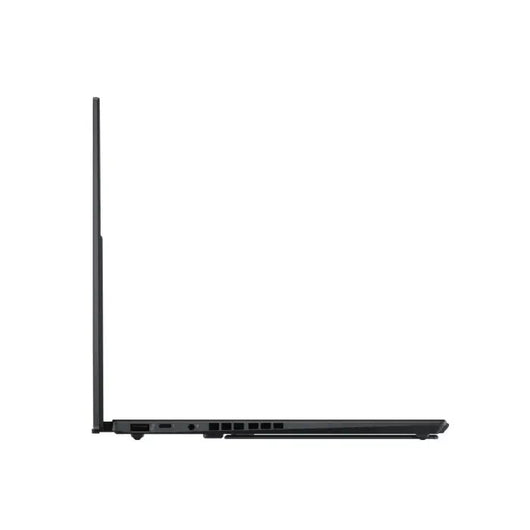

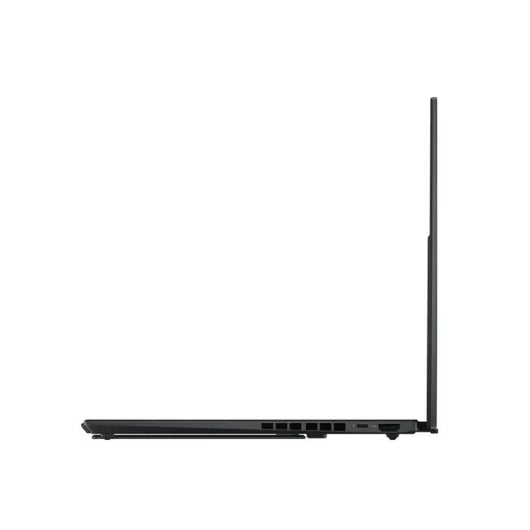

1x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps) 2x Thunderbolt™ 4 with support for display / power delivery (data speed up to 40Gbps) 1x HDMI 2.1 TMDS 1x 3.5mm Combo Audio Jack |
| Camera | FHD camera with IR function to support Windows Hello |
|
Audio |
Smart Amp Technology Built-in speaker Built-in array microphone with Cortana support |
|
Network/Wireless |
Wi-Fi 7(802.11be) (Tri-band)2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
|
Keyboard & Touchpad |
Soft Keyboard, 1.4mm Key-travel, Precision touchpad |
|
Operating System |
Windows 11 Home |
|
Battery |
75WHrs, 4S1P, 4-cell Li-ion |
|
Power Supply |
TYPE-C, 65W AC Ultra Mini Adapter, Output: 20V DC, 3.25A, 65W, Input: 100-240V AC 50/60GHz universal |
|
Dimensions |
31.35 x 21.79 x 1.46 ~ 1.99 cm |
|
Weight |
1.65 kg (3.64 lbs) Weight of system: 1.35 kg Weight of keyboard: 0.30 kg |
|
Security |
Trusted Platform Module (Firmware TPM) IR webcam with Windows Hello support |
| Color | Inkwell Gray |
| Included in the Box |

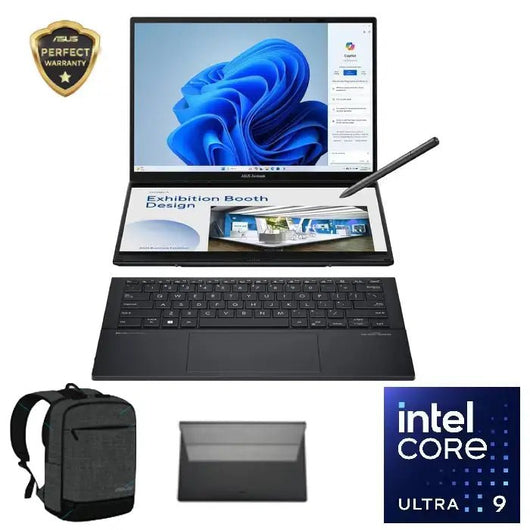

Stylus (ASUS Pen SA203H-MPP2.0 support) Backpack Sleeve |

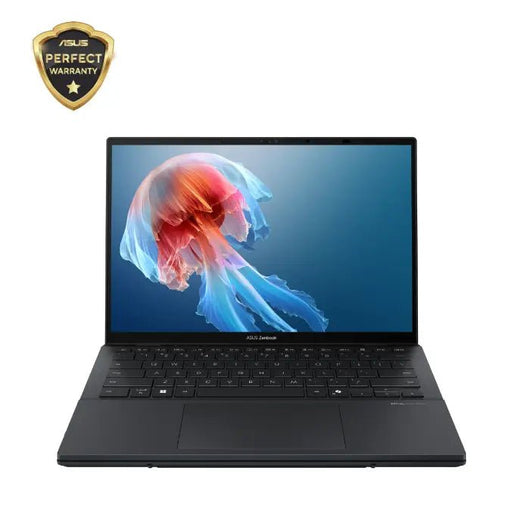

The ASUS Zenbook DUO is a revolutionary dual-screen laptop that redefines multitasking and portability. It features two gorgeous 3K OLED 120Hz displays, offering an unprecedented amount of screen real estate in a thin, elegant chassis. Powered by the top-tier Intel Core Ultra 9 processor with integrated AI acceleration, this machine is designed for professionals and creators who demand maximum versatility, intelligence, and uncompromising performance, all packaged in a sophisticated Inkwell Grey finish.
Key Features and Technical Innovation
1. Dual-Screen Versatility (ASUS Lumina OLED)
The core feature of the Zenbook DUO is its unique dual-screen setup, offering multiple modes of use:

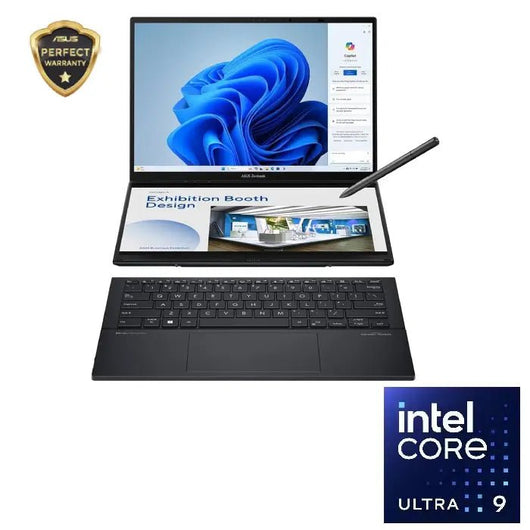

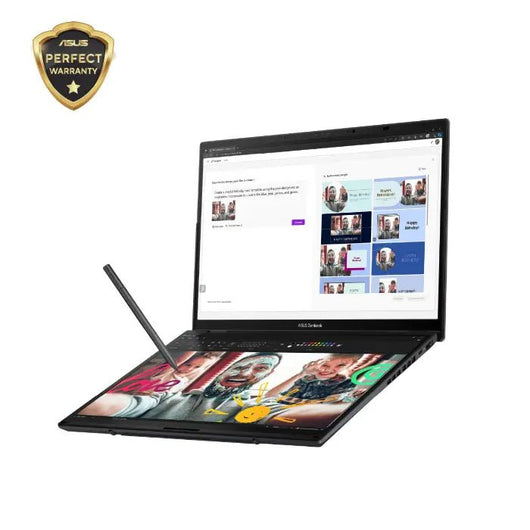

- Displays: Dual 14-inch 3K (2880×1800) OLED Touchscreens with a 120Hz refresh rate.
- Supporting Text: Having two identical 3K OLED panels provides perfect blacks, infinite contrast, and professional-grade color accuracy. The 120Hz refresh rate ensures ultra-smooth scrolling and motion. The ability to use both screens vertically or horizontally, or combine them into one massive display, fundamentally changes how you multitask, making it ideal for coding, design work, or streaming while you work.
- Form Factor: Convertible Dual-Screen Design.

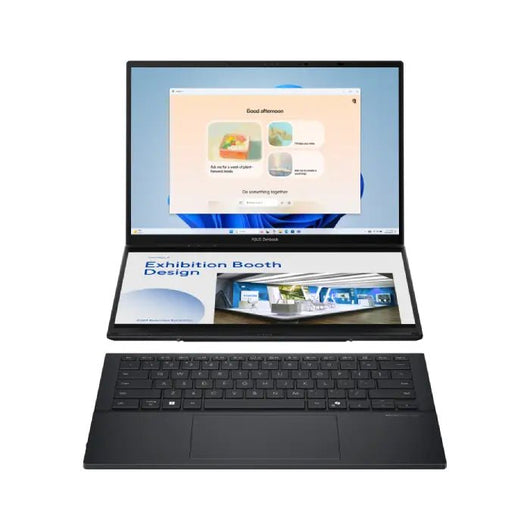

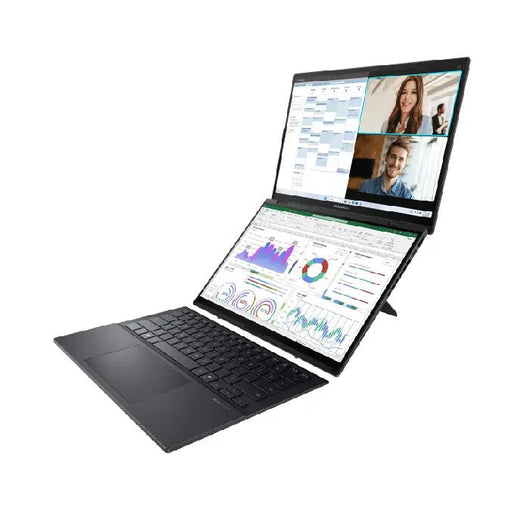

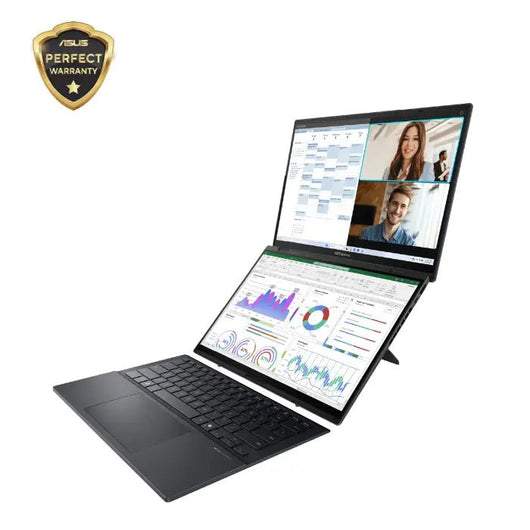

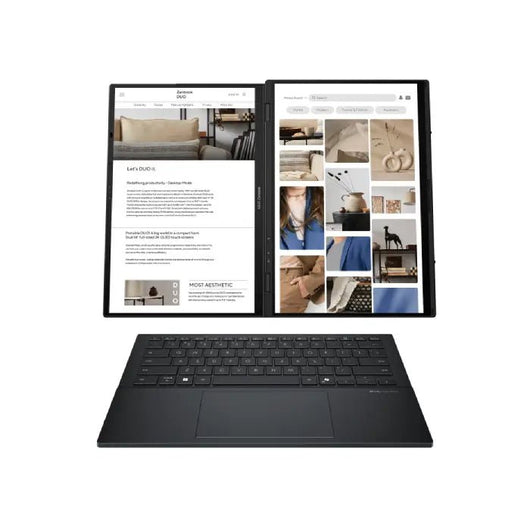

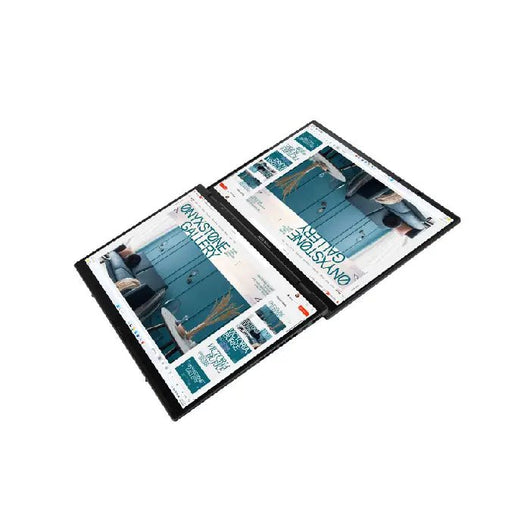

- Supporting Text: The laptop includes a detachable, full-size keyboard and touchpad, allowing the second screen to be used independently. This enables modes like Desktop Mode (two stacked screens) or Sharing Mode (back-to-back screens), transforming the laptop into a portable workstation.
2. Flagship AI-Accelerated Performance
Equipped with Intel's best mobile processor, the DUO is built for the future of intelligent computing:
- Processor: Intel Core Ultra 9 285H.
- Supporting Text: The Core Ultra 9 is an elite chip featuring a dedicated Neural Processing Unit (NPU). This NPU significantly accelerates AI-specific tasks like advanced video processing, live language translation, and noise suppression, allowing them to run faster and with far greater power efficiency than on a traditional CPU.
- System Memory (RAM): 32GB.
- Supporting Text: A massive 32GB of high-speed RAM is crucial for seamlessly running complex applications across both screens. This capacity ensures smooth, instantaneous performance whether you are coding on one display and debugging on the other, or running multiple creative suites simultaneously.
- Storage (SSD): 2TB SSD.
- Supporting Text: The enormous 2TB Solid State Drive provides vast storage for all your projects and media. Furthermore, the SSD ensures lightning-fast system boot times and virtually instant data access, which is essential when managing large creative files across two displays.
3. Integrated Graphics and Operating System
- Graphics: Intel Arc Graphics.
- Supporting Text: The integrated Intel Arc Graphics provide powerful visual processing, supporting accelerated rendering in creative applications (using technologies like XeSS) and enabling smooth handling of 3D environments and multiple high-resolution displays simultaneously.
- Operating System: Pre-loaded with Windows 11.
- Supporting Text: Windows 11 is optimized for the dual-screen setup, with features and gestures that intuitively manage windows and applications across the two displays, maximizing the utility of the DUO form factor.
