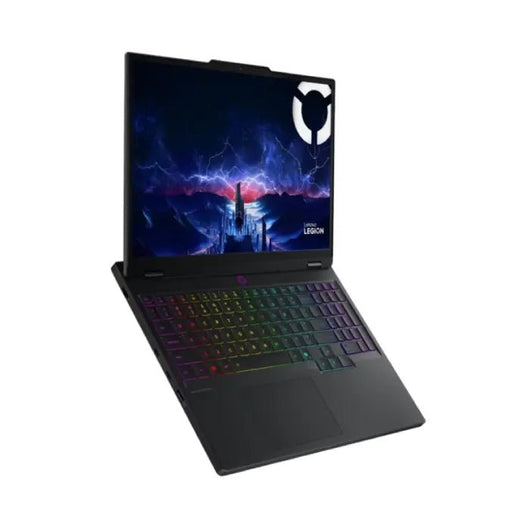

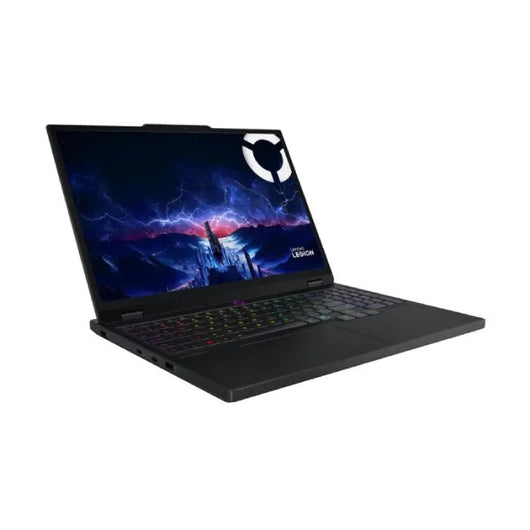

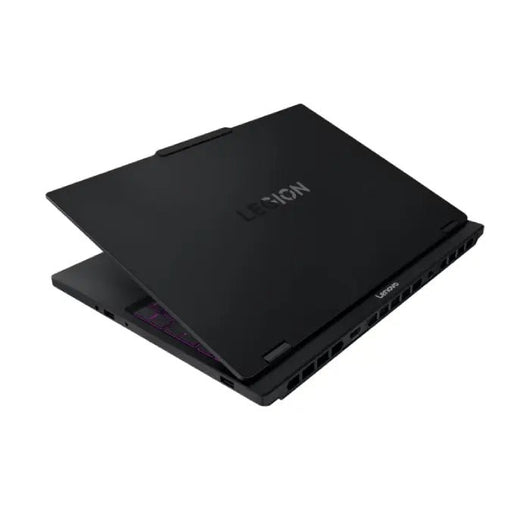

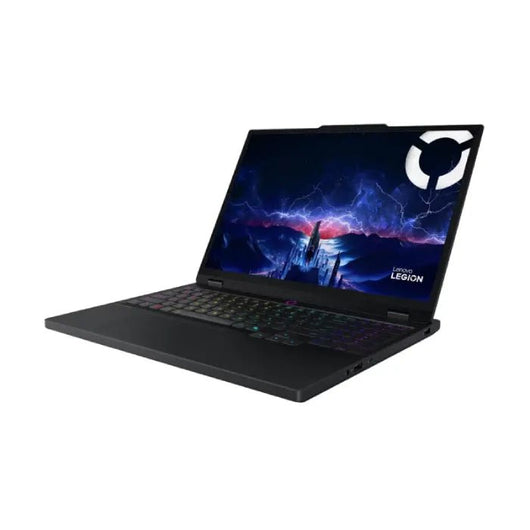

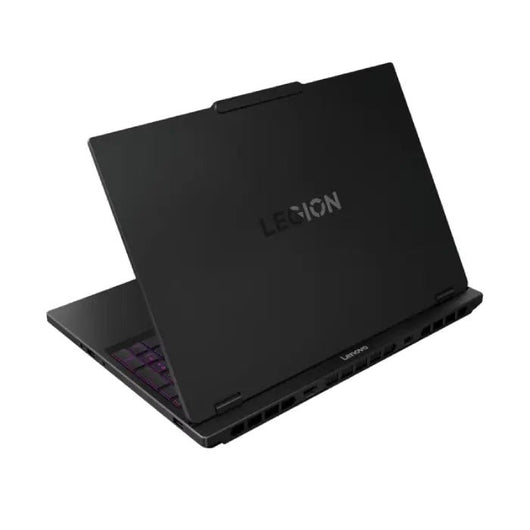

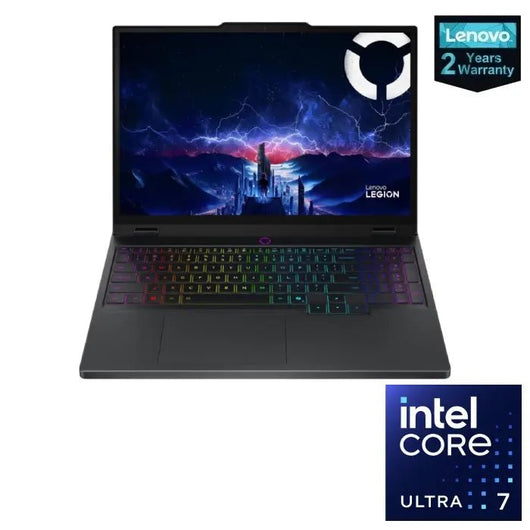

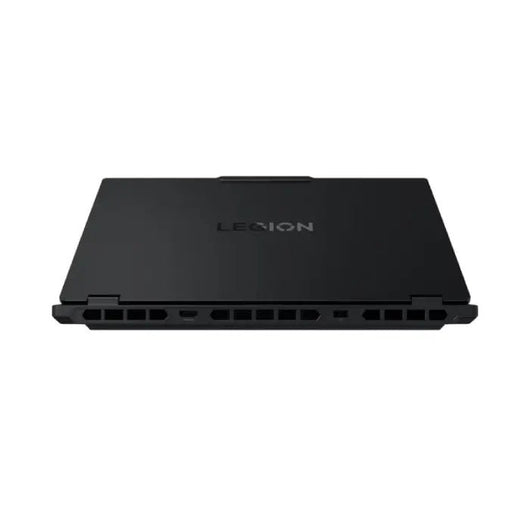

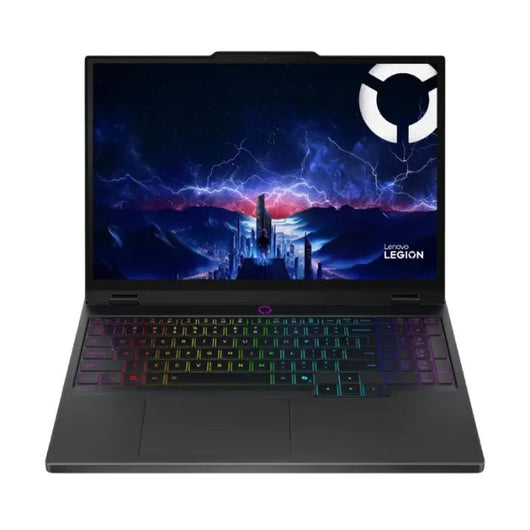

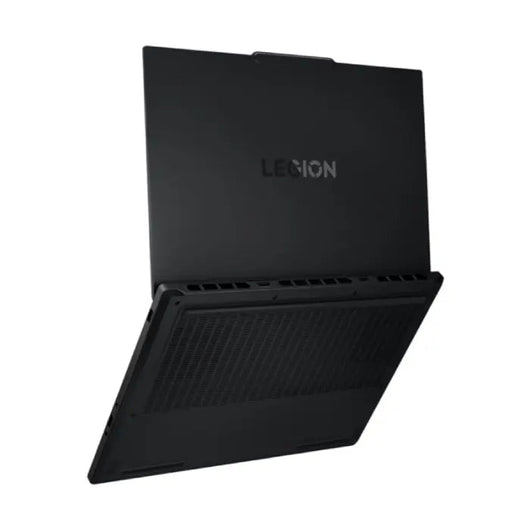

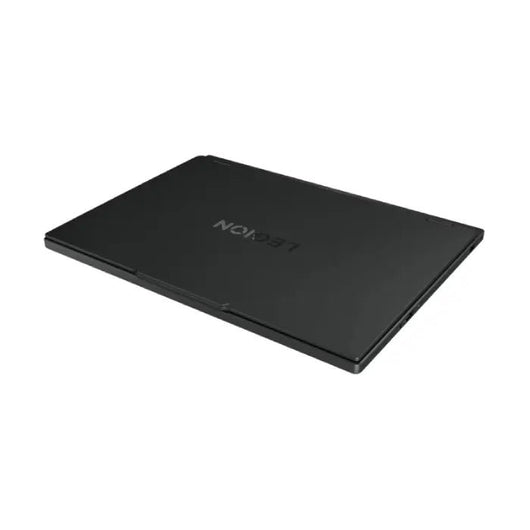

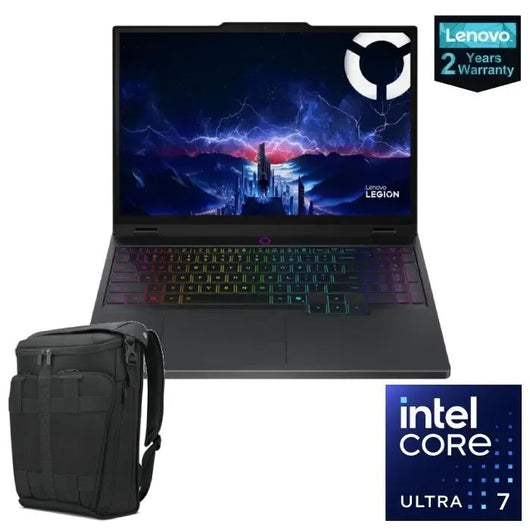

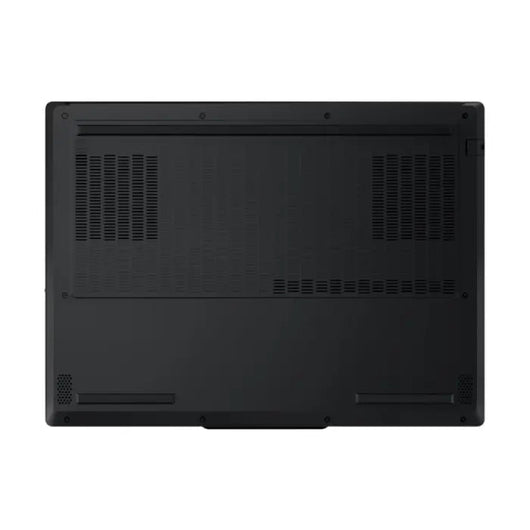

Lenovo Legion 5 15IAX10 Gaming Laptop Intel Core Ultra 7 255HX Black 83F00045ED
Lenovo Legion 5 15IAX10 Gaming Laptop, Intel Core Ultra 7 255HX, 32GB RAM - Technical Specifications
| Brand | Lenovo |
| Model Name | Legion 5 15IAX10 |
| Model Number | 83F00045ED |
| AI PC Category | AI-Powered Gaming PC |
| Processor |
Intel® Core Ultra 7 255HX, Arrow Lake Processor 20Cores (8P + 12E) / 20Threads Max Turbo up to 5.2GHz, 30MB |
| Memory | 2x 16GB SO-DIMM DDR5-5600 RAM |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable Max Memory: Up to 32GB DDR5-5600 offering |
| Storage | 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe® |
| Card Reader | None |
| Optical DVD | None |
| Graphic Card |
NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS |
| Display Resolution |
WQXGA (2560x1600) OLED 500nits glossy, 100% DCI-P3, 165Hz, Dolby Vision®, DisplayHDR™ True Black 600 |
| Display Size | 15.1-Inch |
| Touchscreen | None |
| I/O Ports |
2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1 1x HDMI® 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x Power connector |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3287 codec |
| Speakers / Microphone |
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio 2x, Array Microphones |
| Camera | 5.0MP with E-shutter |
| Network/wireless |
Wi-Fi® 7, 802.11be 2x2 + Bluetooth 5.4 Ethernet: 100/1000M (RJ-45) |
| Keyboard & Touchpad |
24-Zone RGB Backlit, Arabic Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
| Operating System | Windows® 11 Home |
| Battery | Integrated 80Wh |
| Power | 245W Slim Tip (3-pin) |
| Dimensions |
344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79- 0.85 inches) |
| Security |
Firmware TPM 2.0 Enabled E-shutter |
| Weight | Starting at 1.9 kg (4.19 lbs) |
| Product warranty | 2 Years |
Gaming Laptop, Lenovo Legion 5 15IAX10 , Intel Core Ultra 7 255HX - Description
Experience elite gaming performance with the Lenovo Legion 5 15IAX10 Gaming Laptop, designed for gamers who demand speed, power, and stunning visuals. Equipped with the latest Intel Core Ultra 7 255HX processor and NVIDIA GeForce RTX 5060 8GB graphics, this laptop delivers exceptional performance in both gaming and creative workloads.
With a massive 32GB RAM and 1TB SSD, you get ultra-fast load times, smooth multitasking, and enough storage for all your games and files. The 15.1-inch WQXGA (2560x1600) display with 165Hz refresh rate ensures ultra-smooth gameplay with vibrant colors and sharp details, giving you a competitive edge in fast-paced games. The Windows 11 operating system offers a modern gaming experience, while the 2-year warranty provides peace of mind. Wrapped in a sleek black design, the Legion 5 combines performance and style, making it perfect for gamers, streamers, and content creators.
Cutting Edge Performance, Anywhere
Experience next-level gaming and productivity with up to Intel® Core™ Ultra processors. Enjoy ultrasmooth gameplay, seamless multitasking, and AI-accelerated creative tasks.Connect all peripherals with Thunderbolt™ 4 and boost unplugged playtime with cooler, quieter performance for gaming, streaming, and creating.
Experience Smart Design With Lenovo AI Engine+
Play games at higher FPS, stream smoothly, or explore new workflows with Lenovo AI Engine+ and up to LA1+LA3. Developed over four years, it optimizes system settings based on the game or app you use. This boosts FPS in top AAA games and reduces render times in creation apps, all easily managed through Legion Space.
