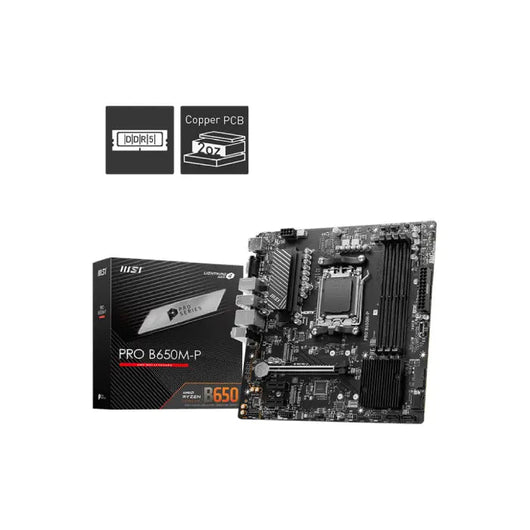

MB MSI PRO B650M P WiFi DDR5 - Technical Specifications
| Brand | MSI |
| Model | PRO B650M-P |
| Chipset | AMD B650 |
| CPU |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory |
4x DDR5, Maximum Memory Capacity 256GB Supports Dual-Channel mode |
| Onboard Graphics |
1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| USB |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
| LAN | Realtek® 8125BG 2.5G LAN |
| Internal IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |
Professional Reliability: MSI PRO B650M-P AMD Motherboard 🖥️
The MSI PRO B650M-P DDR5 is the perfect micro-ATX (mATX) motherboard for building a high-performance, compact desktop powered by AMD. Engineered for stability and efficiency, this motherboard is designed to maximize the potential of the latest AMD Ryzen processors.
Featuring the AMD Socket AM5, the B650M-P fully supports AMD Ryzen 7000 and 8000 Series CPUs, giving you access to next-generation processing power. It is equipped with DDR5 memory support, allowing you to harness blazing-fast RAM speeds for seamless gaming, multitasking, and professional applications.
The B650 chipset provides robust connectivity, including PCIe 4.0 slots for modern graphics cards and high-speed NVMe SSDs. While the model name suggests "P" (Pro), this series is known for its durable components and optimized VRM design, ensuring stable power delivery even when pushing the Ryzen processor.
The MSI PRO B650M-P is an ideal choice for compact builds that don't compromise on performance, offering a solid foundation for your next AMD system build.
Key Features:
- Chipset: AMD B650
- Socket: AMD AM5 (Supports Ryzen 7000/8000 Series)
- Memory: DDR5 Support
- Expansion: PCIe 4.0 Support
- Form Factor: Micro-ATX (mATX)
- Best For: Mid-Range/Compact AMD Gaming and Workstations
Build your compact AMD powerhouse—shop the MSI PRO B650M-P motherboard today!
