Asus PRIME H610M-D D4 Mothebroard - Technical Specifications
| Brand | Asus |
| Model | PRIME H610M-D D4 |
| CPU |
Intel® Socket LGA1700 for Intel® Core™ Processors, Intel® Core™ 12th Gen Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® H610 Chipset |
| Memory Channel | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un- buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slots |
1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot |
| Graphics |
1 x D-Sub port 1 x HDMI® port** |
| Storage |
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used. |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB |
Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |

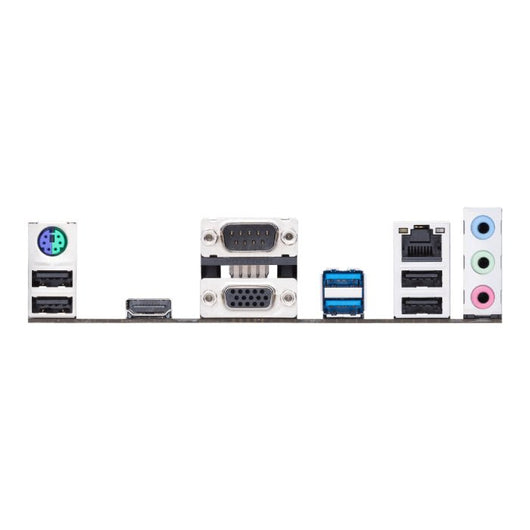

| Back Panel I/O Ports |
2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard/Mouse combo port |
| Fan and Cooling related |
1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header |
| Power related |
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Storage related |
1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports |
| USB |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Miscellaneous |
1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 ANCHOR Installation Media 1 x Support DVD Documentation 1 x User Guide |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor |
mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
Efficiency and Reliability: Asus PRIME H610M-D D4 Motherboard 🖥️

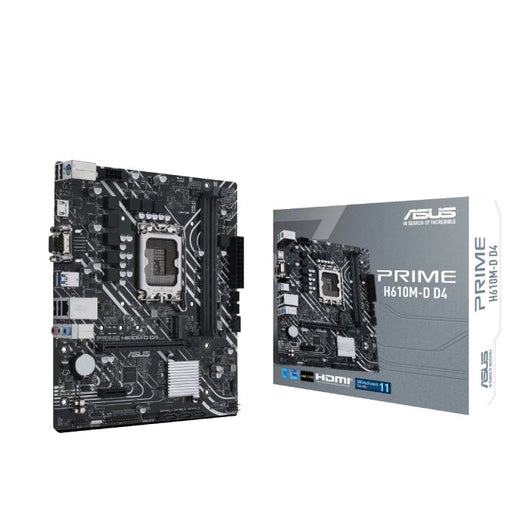

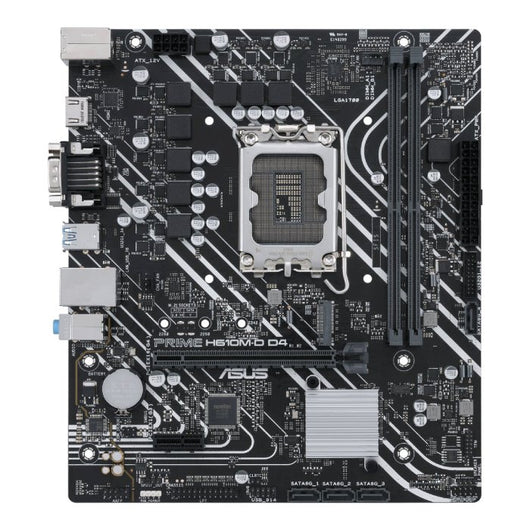

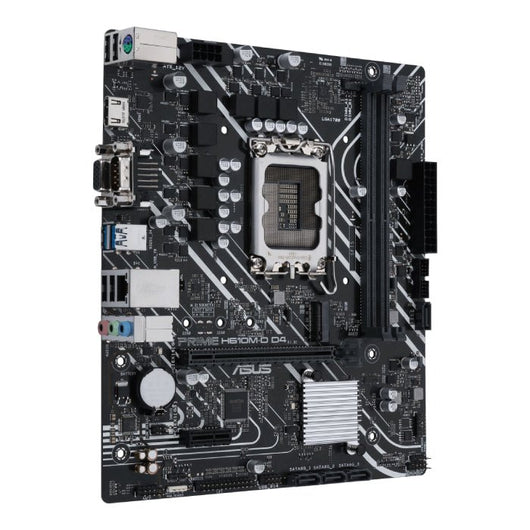

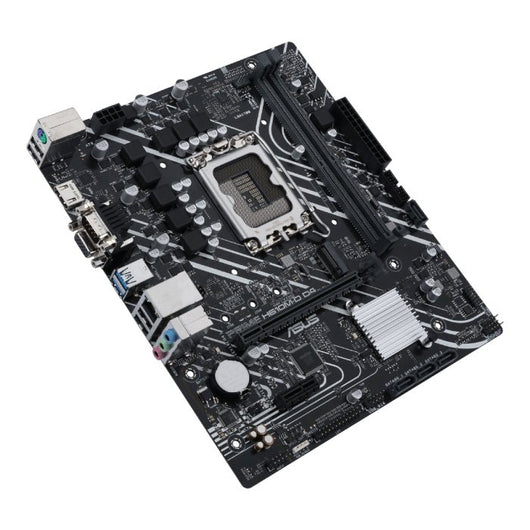

The Asus PRIME H610M-D D4 (Model: 90MB1A00-M0EAY0) is a robust and versatile Micro-ATX motherboard designed to unleash the full potential of 12th, 13th, and 14th Generation Intel® Core™ processors. Engineered with a focus on durability and productivity, the Prime series is the perfect foundation for your next home or office PC build.
Next-Gen Connectivity: Despite its compact size, this motherboard is packed with modern features. It supports PCIe 4.0, providing increased bandwidth for the latest graphics cards. The integrated M.2 slot (PCIe 3.0) allows for lightning-fast SSD performance, significantly reducing boot times and application loading.
Optimized Cooling and Protection: Asus Prime motherboards are built with comprehensive cooling controls. The H610M-D D4 features multiple temperature sources and a series of hybrid fan headers to ensure your rig stays cool and stable under workload. Additionally, 5X Protection III provides hardware-level safeguards to protect your components from electrical damage and environmental factors.
Smart Tuning: The Asus Q-Design and UEFI BIOS make it easy for both beginners and seasoned builders to configure their systems. With DDR4 memory support, you can enjoy stable performance and high-speed data processing for everyday tasks and multitasking.
Key Features:
- Socket: Intel® LGA 1700 for 14th, 13th & 12th Gen Intel® Processors.
- Expansion: PCIe 4.0 slot for high-speed GPUs.
- Storage: 1x M.2 slot (up to 32Gbps) and 4x SATA 6Gb/s ports.
- Memory: Dual Channel DDR4 (up to 64GB).
- Connectivity: Realtek 1Gb Ethernet, USB 3.2 Gen 1, HDMI, and D-Sub.
- Audio: Premium Japanese audio capacitors for immersive sound.
