Asus Intel PRIME B760M-A DDR4 LGA 1700 Motherboard - Technical Specifications
| Brand | Asus |
| Model | PRIME B760M-A D4-CSM |
| CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B760 Chipset |
| Memory Channel |
4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Expansion Slots |
Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Graphics |
1 x DisplayPort 2 x HDMI® ports |
| Storage |
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB |
Rear USB (Total 6 ports) additional USB 3.2 Gen 1 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |

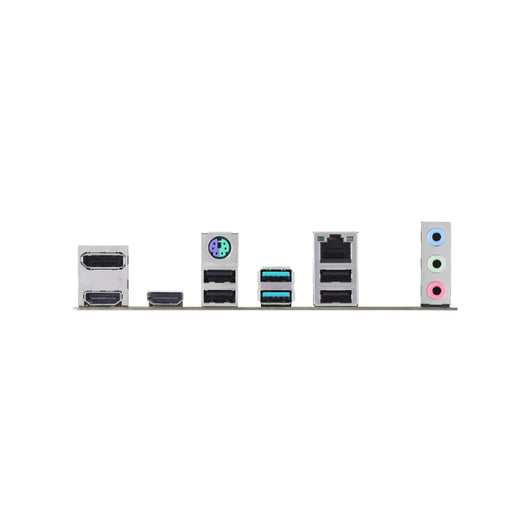

| Back Panel I/O Ports |
2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Fan and Cooling related |
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers |
| Power related |
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Storage related |
2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| USB |
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port |
| Miscellaneous |
1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

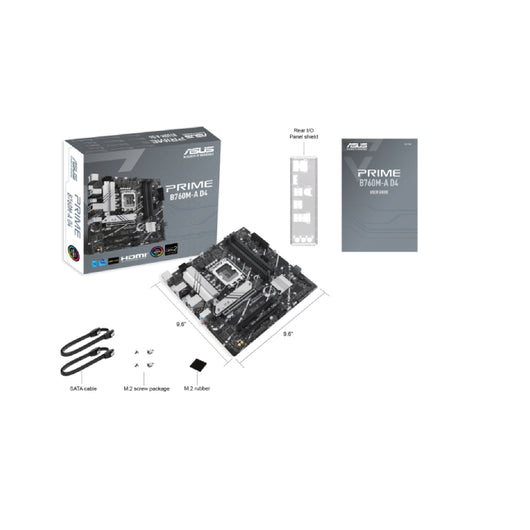

| Cables | 2 x SATA 6Gb/s cables |
| Miscellaneous |
1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD |
| Documentation |
1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor |
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |

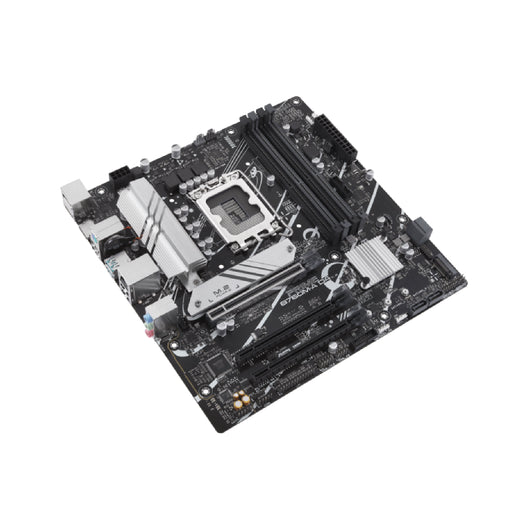

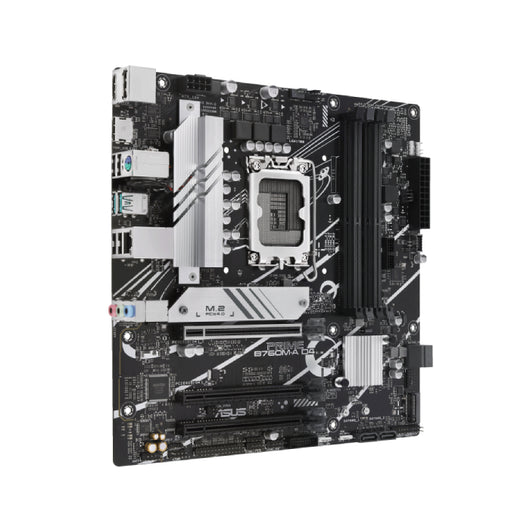

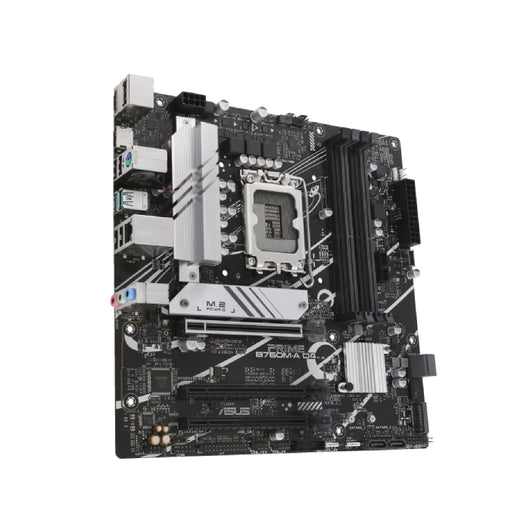

ASUS PRIME B760M-A D4-CSM: Versatile Performance & Business Stability
The ASUS PRIME B760M-A D4-CSM is engineered to unleash the full potential of 12th, 13th, and 14th Gen Intel® Core™ processors. Built on the Intel® B760 chipset with an LGA 1700 socket, this micro-ATX motherboard strikes the perfect balance between professional productivity, high-speed connectivity, and long-term durability.
Next-Gen Connectivity and Speed
Stay ahead of the curve with PCIe 4.0 support for the latest graphics cards and storage devices. With dual M.2 slots (up to 64 Gbps via PCIe 4.0), you’ll experience lightning-fast boot times and data transfers. The inclusion of Rear USB 3.2 Gen 2 ports and a Front USB 3.2 Gen 1 Type-C® connector ensures all your peripherals run at peak performance.
Corporate Stable Model (CSM) Advantage
As part of the ASUS Corporate Stable Model program, this motherboard is designed for stability. It includes ASUS Control Center Express, a server-grade IT management software, and a guaranteed long-term supply life cycle, making it the ideal choice for business environments and workstations.
Comprehensive Cooling and Power
The PRIME B760M-A D4-CSM is built to stay cool under pressure. It features:
- VRM Heatsinks and Thermal Pads: For optimized heat transfer from the MOSFETs.
- Fan Xpert 2+: Total control over system fans via the UEFI BIOS or software.
- DDR4 Support: Optimized memory trace routing for improved stability and compatibility.
