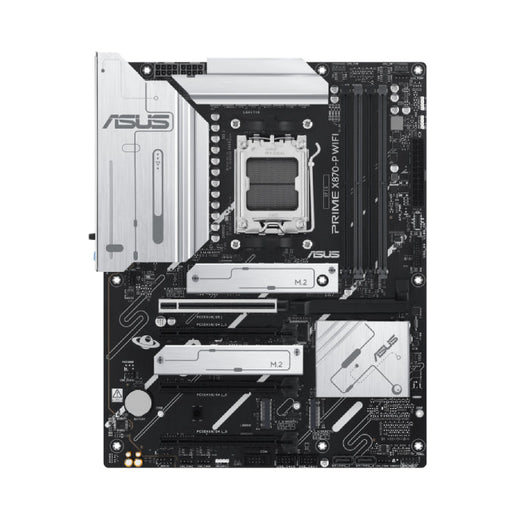

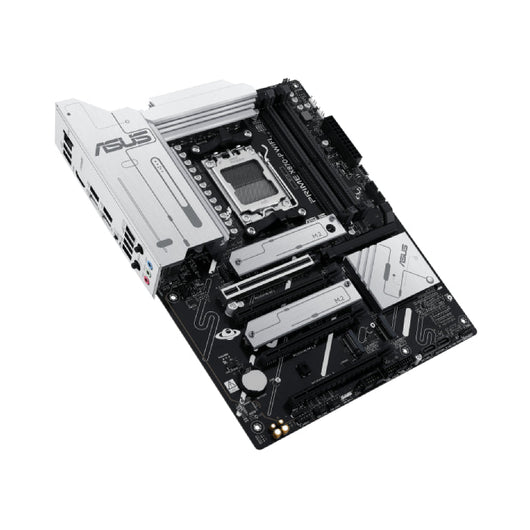

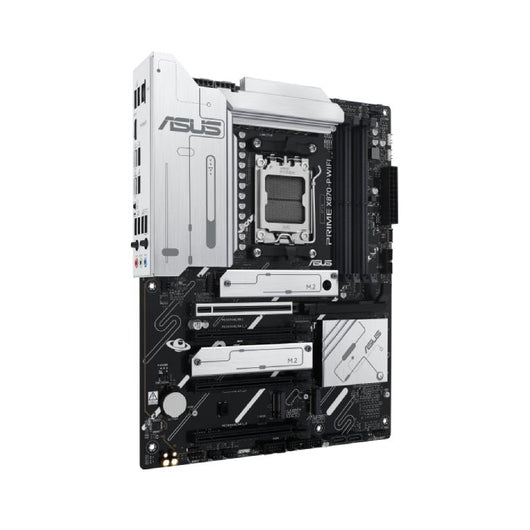

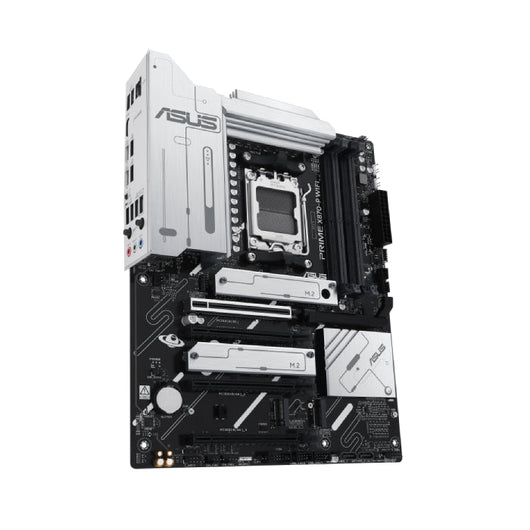

ASUS Prime X870-P WiFi Motherboard - Technical Specifications
| Brand | Asus |
| Model | PRIME X870-P WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Memory |
4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
| Graphics |
1 x HDMI™ port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| Expansion Slots |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 3 x PCIe 4.0 x16 slots (support x1 mode) |
| Storage |
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode) 2 x SATA 6Gb/s ports |
| Ethernet |
1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless and Bluetooth |
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 |
| USB |

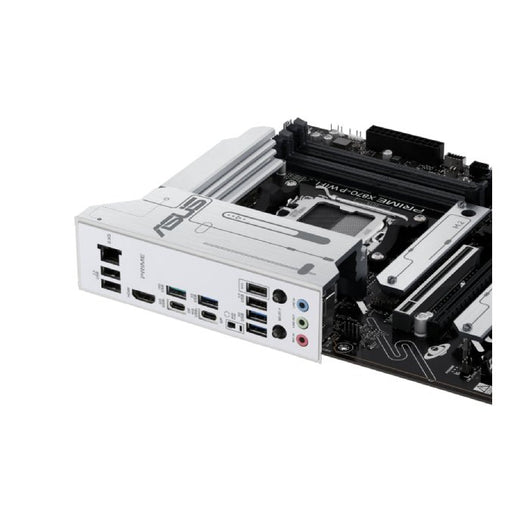

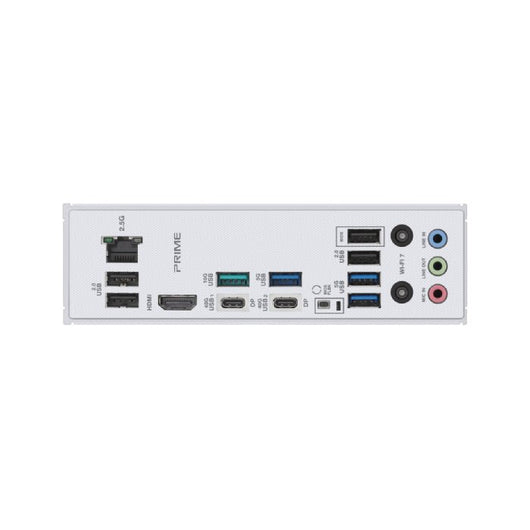

Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |

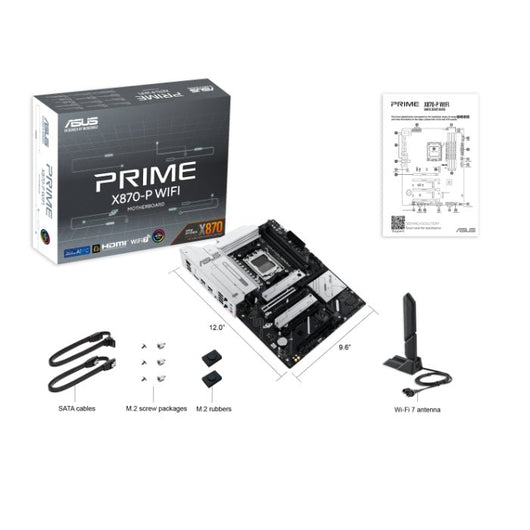

| Accessories |

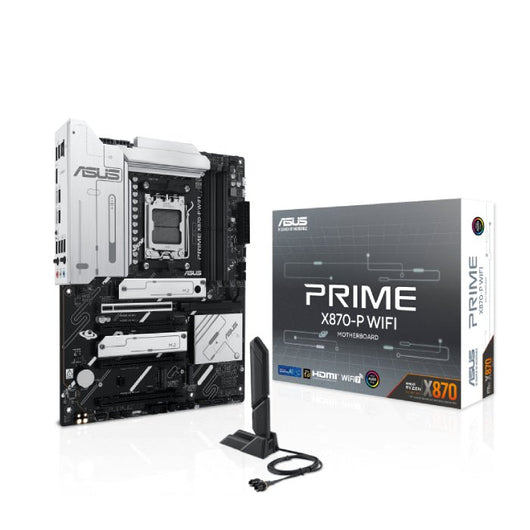

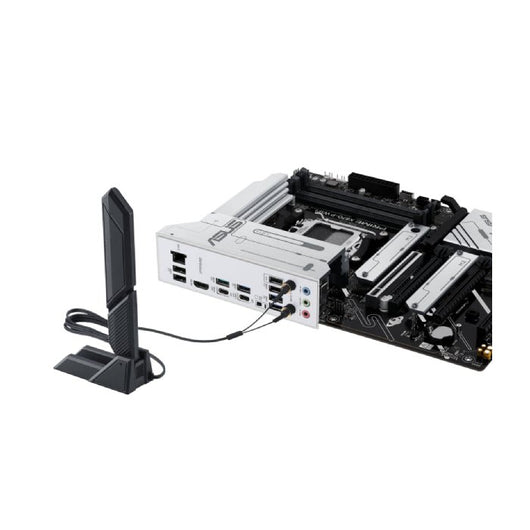

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 2 x Screw packages for M.2 SSD Documentation 1 x Quick start guide |
| Operating system | Windows 11 |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Empower Your Build: ASUS Prime X870-P WiFi Motherboard ⚡

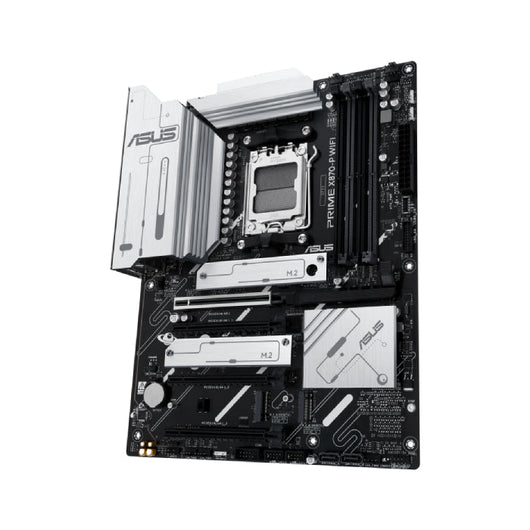

The ASUS Prime X870-P WiFi (Model: 90MB1LS0-M0EAY0) is the foundation for your next high-performance AMD PC. Designed to fully unlock the potential of AMD Ryzen™ 9000, 8000, and 7000 Series processors, this AM5 motherboard balances professional aesthetics with cutting-edge connectivity and robust power delivery.
Next-Gen Connectivity and Speed: The X870 chipset brings the future to your desktop. With PCIe 5.0 support for both graphics cards and M.2 storage, you are ready for the fastest SSDs and GPUs on the market. Stay connected with integrated WiFi 7 and 2.5Gb Ethernet, ensuring lag-free gaming and lightning-fast data transfers.
Optimized Cooling and Power: Engineered for stability, the Prime X870-P WiFi features an enhanced power solution to handle the high demands of Ryzen CPUs. Multiple massive heatsinks for the VRM, M.2 slots, and chipset, combined with hybrid fan headers, keep your system cool under intense workloads or marathon gaming sessions.
DDR5 Performance: Take your memory speeds to the limit with advanced DDR5 support. ASUS OptiMem II technology improves trace routing to provide enhanced memory overclocking stability and performance.
Key Features:
- Socket: AMD AM5 for Ryzen™ Desktop Processors.
- Chipset: AMD X870.
- Memory: 4 x DIMM, Max. 192GB, DDR5.
- Expansion: PCIe 5.0 x16 slot for next-gen GPUs.
- Storage: PCIe 5.0 M.2 slot for ultra-fast NVMe SSDs.
- Networking: Onboard WiFi 7 and Realtek 2.5Gb Ethernet.
- Ports: USB4® support for 40Gbps speeds and high-speed peripherals.
Start your next high-end build today with the ASUS Prime X870-P WiFi!
