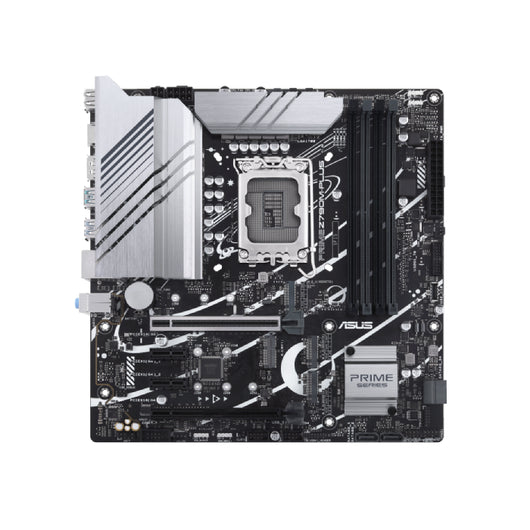

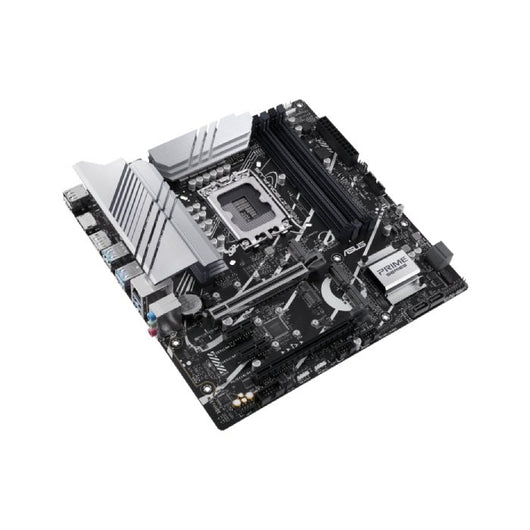

ASUS Prime Z790M-Plus LGA 1700 Motherboard - Technical Specifications
| Brand | Asus |
| Model | PRIME Z790M-PLUS |
| CPU |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Chipset |
| Memory |
4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics |
1 x DisplayPort 1 x HDMI port |
| Expansion Slots |
Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots |
| Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Ethernet |
1 x Intel® 1Gb Ethernet ASUS LANGuard |
| Wireless and Bluetooth | M.2 slot only (Key E, CNVi & PCIe |
| USB |

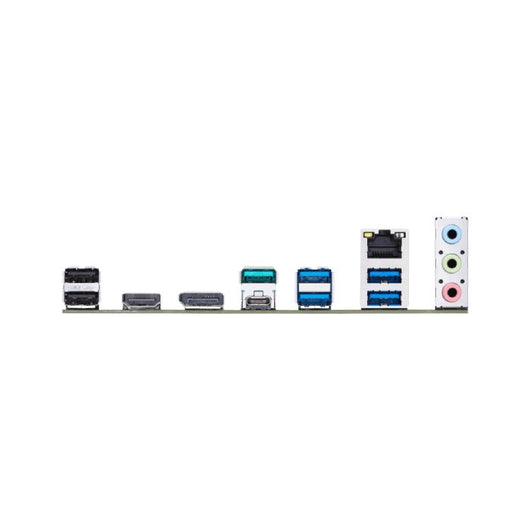

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Accessories |

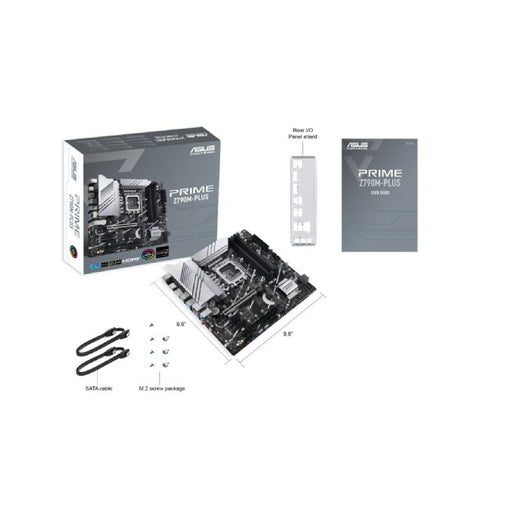

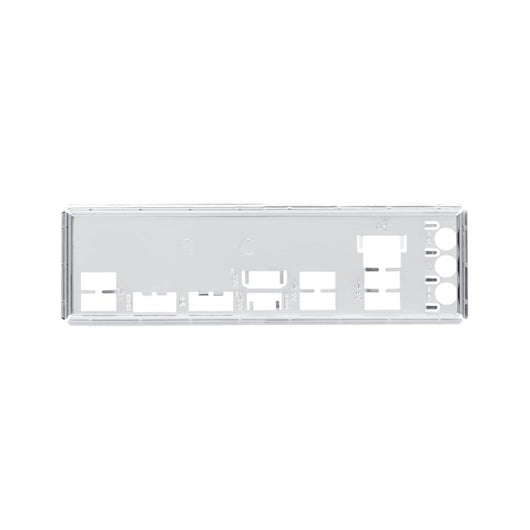

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x Screw packages for M.2 SSD Documentation 1 x User guide |
| Operating system | Windows® 11, Windows® 10 64-bit |
| Form Factor |
mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Compact Power, Elite Performance: ASUS Prime Z790M-Plus 🚀
The ASUS Prime Z790M-Plus (Model: 90MB1E70-M1EAY0) is designed for users who want the high-end features of the Intel® Z790 chipset within a versatile microATX form factor. Perfectly suited for Intel® Core™ 14th, 13th, and 12th Gen processors, this motherboard provides the solid foundation needed for a high-performance gaming rig or professional workstation.
Next-Gen Connectivity: Stay ahead of the curve with a PCIe 5.0 x16 slot, offering twice the bandwidth of previous generations for next-gen graphics cards. With support for DDR5 memory, you can unlock higher speeds and better power efficiency for demanding multitasking and creative workflows.
Advanced Cooling & Power: Despite its compact size, the Prime Z790M-Plus doesn't compromise on stability. It features an enhanced power solution with 10+1 DrMOS power stages and high-quality alloy chokes. Cooling is handled by massive VRM heatsinks, PCH heatsinks, and hybrid fan headers, all manageable via the intuitive Fan Xpert 4 software or the ASUS UEFI BIOS.
Comprehensive I/O: Equipped with three M.2 slots (PCIe 4.0) for lightning-fast storage and a wide array of USB ports—including a rear USB 3.2 Gen 2x2 Type-C®—this motherboard ensures all your peripherals and storage devices run at peak speed.
Key Features:
- Socket: Intel® LGA 1700 (14th/13th/12th Gen)
- Chipset: Intel® Z790
- Form Factor: MicroATX (mATX)
- Memory: DDR5 Support (Dual Channel)
- Expansion: PCIe 5.0 x16 Slot
- Storage: 3x M.2 Slots (Key M)
- Networking: Intel® 1Gb Ethernet
