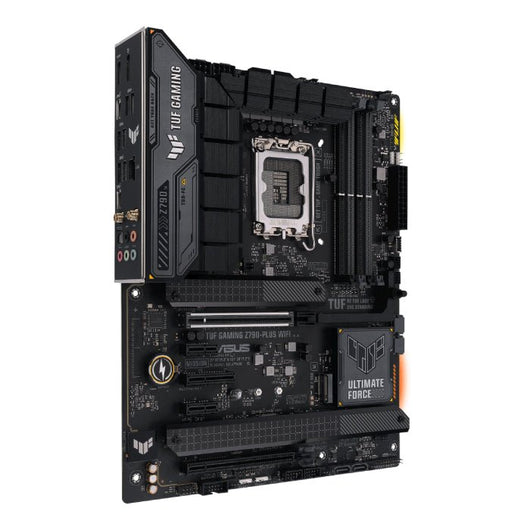

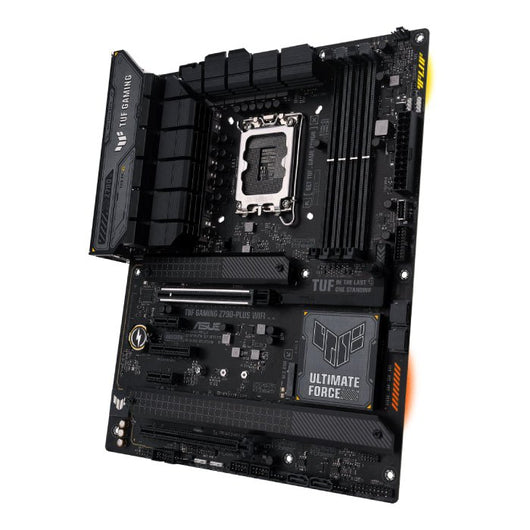

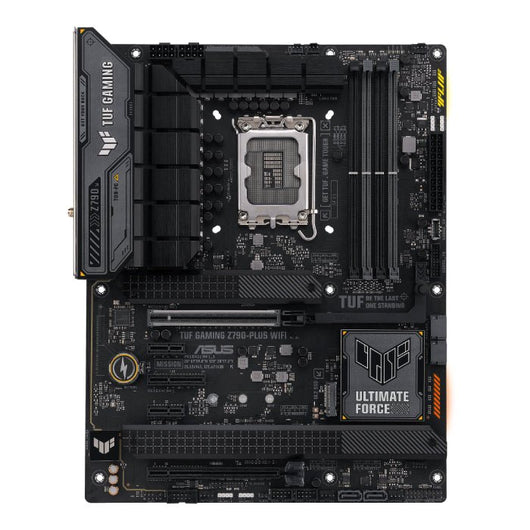

Asus TUF Gaming Z790-PLUS WIFI Motherboard - Technical Specifications
| Brand | Asus |
| Model | Z790-PLUS |
| CPU |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® |
| Chipset | Intel® Z790 Chipset |
| Memory Channel |
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slots |
Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots |
| Graphics |
1 x DisplayPort 1 x HDMI® port** |
| Storage |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Ethernet |
1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| USB |
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type- C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 32-Bit/192 kHz playback*" |
| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type- C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Fan and Cooling related |
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers |
| Power related |
1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| Storage related |
4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| USB |
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous |
3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |

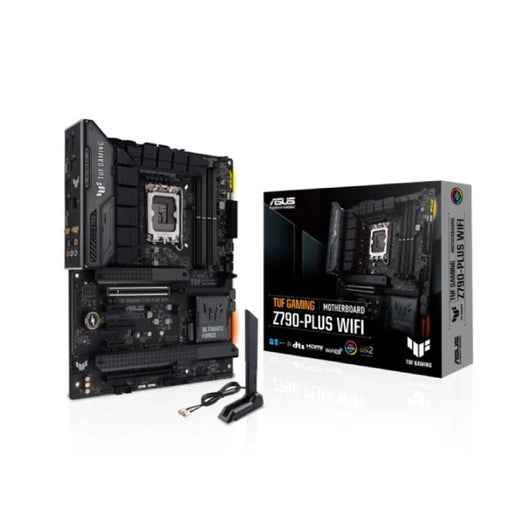

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF GAMING sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
TUF Durability Meets Next-Gen Performance: ASUS TUF Gaming Z790-PLUS WIFI 🛡️
The ASUS TUF Gaming Z790-PLUS WIFI (90MB1D80-M1EAY0) takes the essential elements of the latest Intel platform and combines them with game-ready features and proven durability. Designed with military-grade components and an upgraded power solution, this LGA1700 ATX motherboard provides rock-solid performance for marathon gaming and heavy workloads.
Built for the Future of Gaming: Specifically engineered for Intel® Core™ 14th, 13th, and 12th Gen processors, this motherboard unlocks the full potential of your CPU. With support for ultra-fast DDR5 memory and a PCIe 5.0 x16 slot, your system is ready for the next generation of high-performance graphics cards and high-bandwidth components.
Superior Connectivity & Cooling: Stay connected with integrated Intel® Wi-Fi 6E and Intel 2.5 Gb Ethernet for a lag-free online experience. Storage is handled by four M.2 PCIe 4.0 slots, all featuring dedicated heatsinks to prevent thermal throttling. The board also features an extensive cooling design, including enlarged VRM heatsinks and comprehensive fan controls via Fan Xpert 4.
Why Choose TUF Gaming?
- Power Solution: 16+1 DrMOS power stages for stable power delivery.
- Memory: Advanced DDR5 support for groundbreaking speeds.
- Connectivity: USB 3.2 Gen 2x2 Type-C®, Thunderbolt™ 4 header, and Front-panel USB Type-C®.
- Aura Sync RGB: Customize your rig with full RGB lighting control.
Build with confidence. Shop the ASUS TUF Gaming Z790-PLUS WIFI for your next high-performance PC today!
