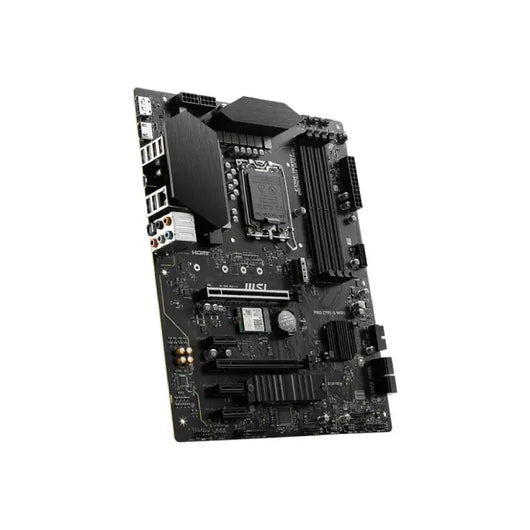

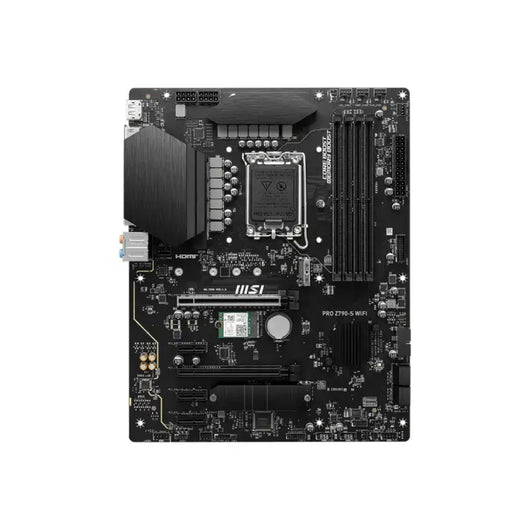

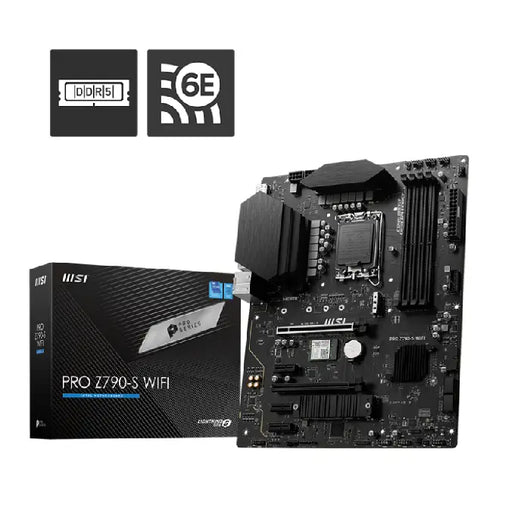

MSI PRO Z790-S WIFI Motherboard, LGA 1700, DDR5

LE 16,350.00
Add to WishlistCompare
Type: MOTHERBOARD MSI
Availability : In stock Pre order Out of stock
Categories: Build Your Pc, Computer, MOTHERBOARD MSI, Motherboards
Tags: INTEL Z790, MOTHERBOARD MSI, اللوحه الام ام اس اي, مازر بورد
Ask a Question
Description

MSI PRO Z790-S WIFI DDR5 LGA 1700 Motherboard - Technical Specifications

CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors,
Intel® Pentium® Gold and Celeron® Processors
Socket LGA 1700
Chipset INTEL Z790
Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Memory Channel Dual
ONBOARD GRAPHICS     1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
SLOT 2x PCI-E x16 slot
3x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 20Gbps Type C (Rear)
LAN Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
AUDIO Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
INTERNAL IO     1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports

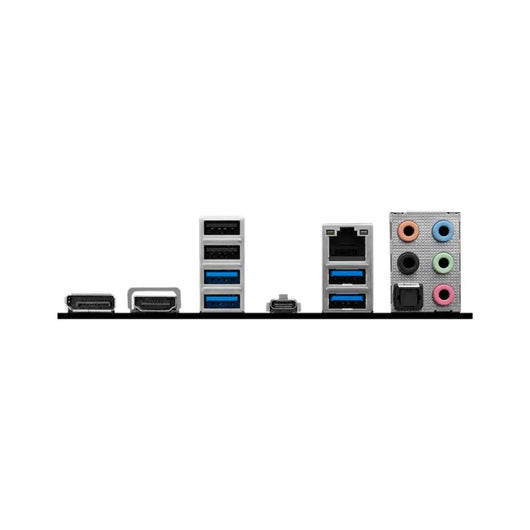

BACK PANEL PORTS     DisplayPort
HDMI™
USB 2.0
USB 3.2 Gen 2x2 20Gbps (Type-C)
2.5G LAN
Audio Connectors
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
S/PDIF-OU
OPERATING SYSTEM     Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFO     ATX
243.84mmx304.8mm
