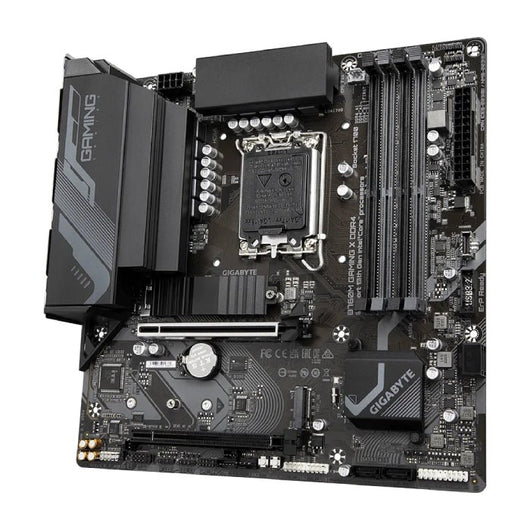

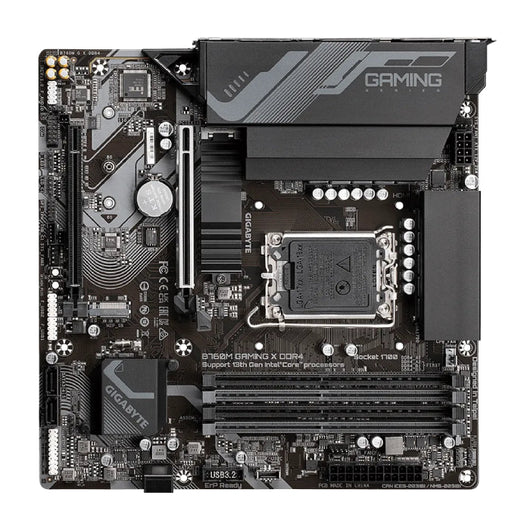

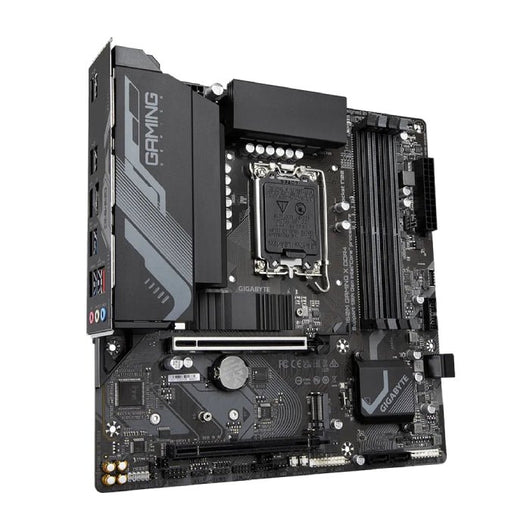

MOTHERBOARD-GIGABYTE-B760M-GAMING X DDR4-LAG-1700

Brand

CPU

LGA1700 socket: Support for the 14th, 13th, and

12th Generation Intel® Core™, Pentium® Gold and

Celeron® Processors

L3 cache varies with CPU

Chipset

Memory

Support for DDR4 5333(O.C.)/ 5133(O.C.)/

5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/

4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/

4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/

3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/

3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/

3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory

modules

4 x DDR DIMM sockets supporting up to 128 GB

(32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8

memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM

1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory

modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics

support:

1 x DisplayPort, supporting a maximum resolution of

4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

1 x HDMI port, supporting a maximum resolution of

4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack

using the audio software. To configure 7.1-channel

audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100

Mbps)

Expansion Slots

CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and

running at x16 (PCIEX16)

The PCIEX16 slot can only support a graphics

card or an NVMe SSD. If only one graphics card is

to be installed, be sure to install it in the PCIEX16

slot.

Chipset:

1 x PCI Express x16 slot, supporting PCIe 3.0 and

running at x4 (PCIEX4)

Storage Interface

CPU:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe

4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type

22110/2280 PCIe 4.0 x4/x2 SSD support)

(M2P_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for

SATA storage devices

USB

Chipset:

1 x USB Type-C® port with USB 3.2 Gen 2 support,

available through the internal USB header

5 x USB 3.2 Gen 1 ports (3 ports on the back panel,

2 ports available through the internal USB header)

1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4

ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C® header, with USB 3.2 Gen 2

support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-

TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

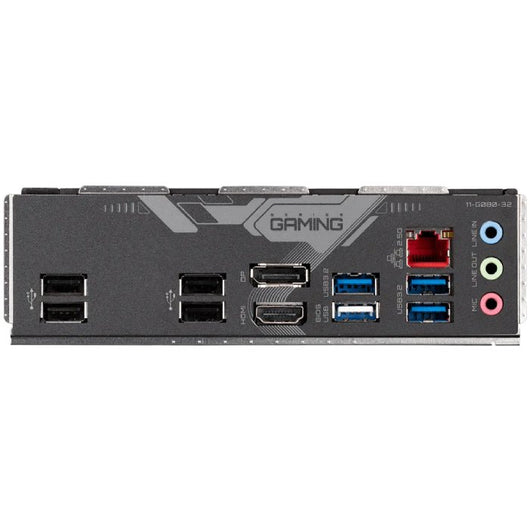

Back Panel Connectors

3 x USB 3.2 Gen 1 ports

5 x USB 2.0/1.1 ports

1 x HDMI 2.0 port

1 x DisplayPort

1 x RJ-45 port

3 x audio jacks

I/O Controller

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is

supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI

5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by

motherboard model. Supported functions of each

application may also vary depending on

motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit
