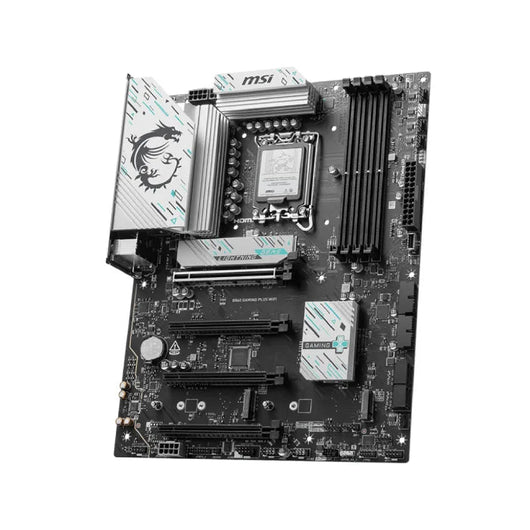

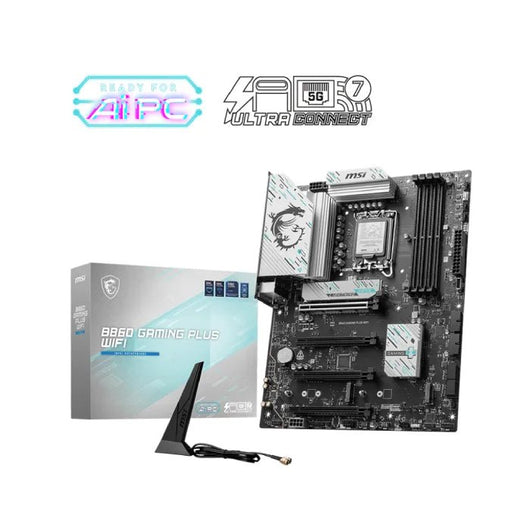

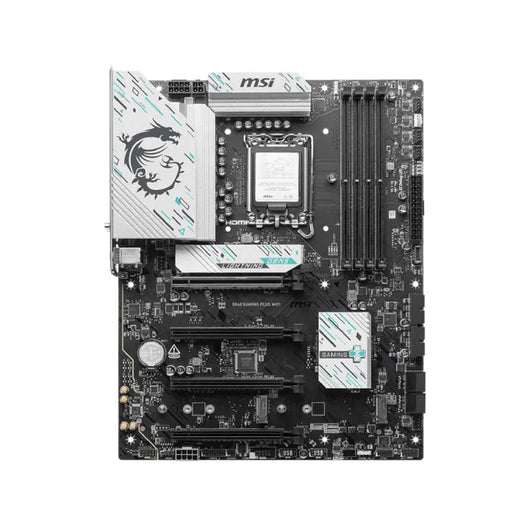

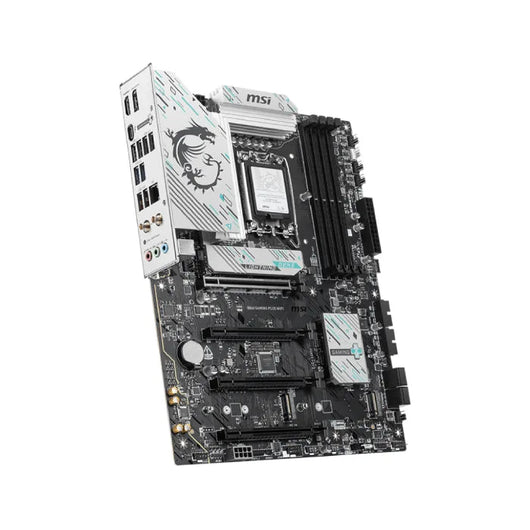

MSI B860 GAMING PLUS WIFI Motherboard - Technical Specifications
| Brand | MSI |
| Model | B860 GAMING PLUS WIFI |
| Chipset | INTEL B860 |
| CPU |
Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s |
| Onboard Graphics |
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Slot |
4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |

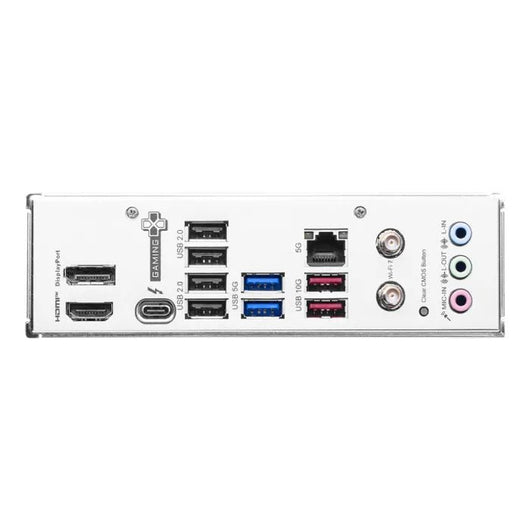

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
| Wireless LAN & Bluetooth |
Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Internal IO |
1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |
| Operating System | Support for Windows® 11 64-bit |
Next-Gen Gaming Foundation: MSI B860 GAMING PLUS WIFI Motherboard 🎮
Prepare your system for future gaming with the MSI B860 GAMING PLUS WIFI, a high-performance ATX motherboard designed for the upcoming generation of Intel processors. This motherboard is built to deliver stability, speed, and essential gaming features at an excellent value.
The B860 GAMING PLUS WIFI supports the latest Intel CPUs via the LGA 1851 socket, providing a cutting-edge platform for maximizing processor performance. Take advantage of extreme speed with support for DDR5 RAM, ensuring smooth multitasking and rapid data handling for modern games and applications.
Built for high-speed connectivity, the motherboard features PCIe 5.0 support for the fastest modern graphics cards and multiple M.2 slots for lightning-quick NVMe SSDs. Stay connected with reliable, low-latency integrated Wi-Fi (likely Wi-Fi 7 or 6E) and high-speed wired LAN.
MSI's gaming-focused design includes enhanced thermal solutions and a robust power delivery system, ensuring stability and endurance during intense gaming sessions. The B860 GAMING PLUS WIFI provides the perfect balance of performance and features for your next mainstream gaming rig.
Key Features:
- Chipset: Intel B860
- Socket: LGA 1851 (Supports Future Intel Processors)
- Memory: DDR5 Support
- Expansion: PCIe 5.0 Support, Multiple M.2 Slots
- Networking: Integrated Wi-Fi and High-Speed LAN
- Form Factor: ATX
Build your future gaming powerhouse—shop the MSI B860 GAMING PLUS WIFI today!
