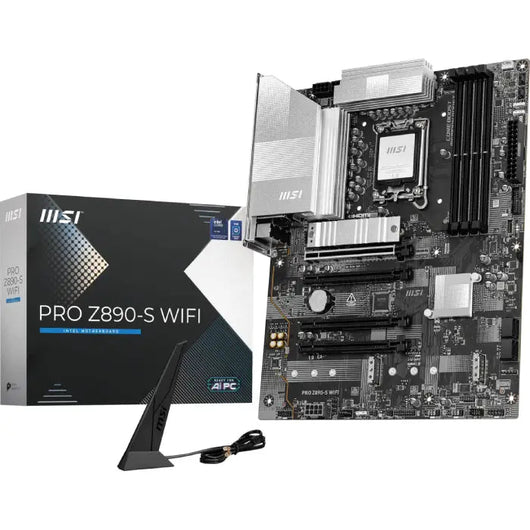

MB MSI PRO Z890-S WIFI Socket LGA 1851 - Technical Specifications
| Brand | MSI |
| Model | PRO Z890-S |
| Chipset | INTEL Z890 |
| CPU |
Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Supports Intel® POR Speed and JEDEC Speed • The DIMM slots on this motherboard have double-sided latches. |
| Onboard Graphics |
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| USB |
4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| LAN | Realtek® 8125D 2.5Gbps LAN |
| Internal IO |
1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |
Next-Generation Foundation: MSI PRO Z890-S WIFI Motherboard 🖥️
The MSI PRO Z890-S WIFI is the cutting-edge foundation for your next high-performance desktop PC. Engineered to support the next era of Intel processors, this LGA 1851 ATX motherboard combines premium components with advanced connectivity for professionals, creators, and enthusiasts.
This motherboard is built to accommodate future Intel CPUs using the new LGA 1851 socket and utilizes the powerful Intel Z890 chipset. It is designed to maximize the performance potential of upcoming processor generations, ensuring your system remains future-proof.
Experience unparalleled data transfer rates with full support for PCIe 5.0 technology across the primary graphics slot and M.2 storage slots. This enables the fastest modern graphics cards and top-tier NVMe SSDs to run without bottlenecks. Stay ahead of the curve with integrated Wi-Fi 7 and fast 2.5G LAN for ultra-low latency networking.
MSI's robust Extended Heatsink Design and optimized power delivery system (VRM) ensure stable, sustained performance even when overclocking the most powerful processors. Choose the MSI PRO Z890-S WIFI for uncompromising reliability and next-generation speed.
Key Features:
- Chipset: Intel Z890 (Next-Gen)
- Socket: LGA 1851 (Future Intel CPU Support)
- Connectivity: Wi-Fi 7 and 2.5G LAN
- Expansion: PCIe 5.0 Support (GPU and M.2)
- Form Factor: ATX
- Best For: High-End Builds, Overclocking, Future-Proofing
Prepare for the future of computing—shop the MSI PRO Z890-S WIFI motherboard today!
