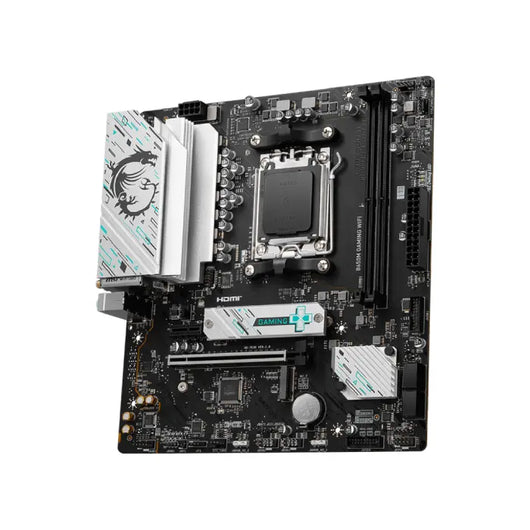

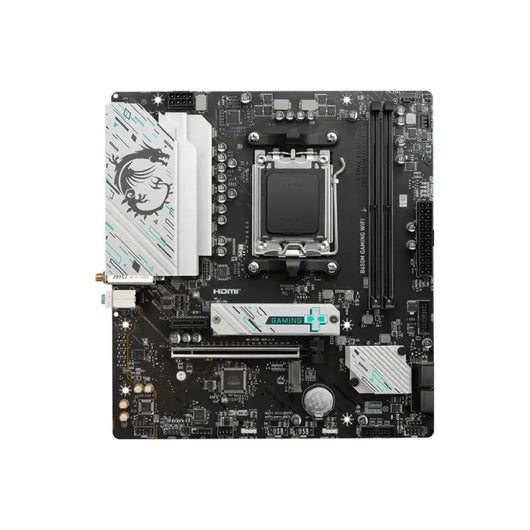

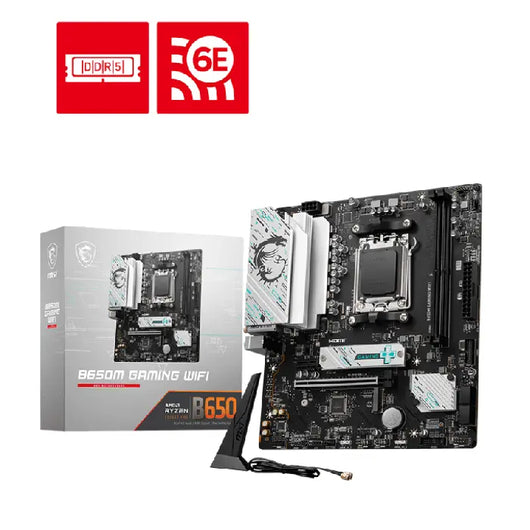

MSI B650M Gaming WIFI DDR5 Motherboard - Technical Specifications
| Brand | MSI |
| Model | B650M Gaming WIFI |
| Chipset | AMD B650 |
| CPU |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory |
2x DDR5, Maximum Memory Capacity 128GB Supports Dual-Channel mode |
| Onboard Graphics |
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
| Slot |
1x PCI-E x16 slot Supports x16/x1 • Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G |
| RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) |
| Wireless LAN & Bluetooth |
Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Internal IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
Built for Performance: MSI B650M GAMING WIFI DDR5 Motherboard 🚀
The MSI B650M GAMING WIFI is a high-performance Micro-ATX motherboard designed to provide a stable and future-proof foundation for your next gaming rig. Built on the AMD AM5 socket, it offers full compatibility with the latest AMD Ryzen™ 7000, 8000, and 9000 series desktop processors, ensuring you're ready for the next generation of gaming.
+1
High-Speed Connectivity & Memory: Step into the future of memory with DDR5 support, allowing for massive bandwidth and faster multitasking. This motherboard is engineered to maximize memory stability and performance through MSI’s specialized layout. For networking, stay ahead of the competition with integrated Wi-Fi 6E and 2.5G LAN, providing ultra-fast, low-latency wireless and wired internet connections.
Advanced Thermal & Storage Solutions: Despite its compact Micro-ATX form factor, the MSI B650M GAMING WIFI doesn't compromise on cooling. It features an extended heatsink design to keep VRMs cool under heavy loads. With M.2 PCIe 4.0 slots, you can take advantage of the fastest SSDs on the market for near-instant boot times and rapid game loading.
+1
Why Choose the MSI B650M GAMING WIFI?
- Socket: AMD AM5 (Supports Ryzen™ 7000/8000/9000 Series).
- Memory: Dual-channel DDR5 for elite speed.
- Networking: Wi-Fi 6E and 2.5G LAN for lag-free gaming.
- Storage: Lightning Gen 4 M.2 slots for high-speed NVMe SSDs.
- Audio: High Definition Audio for immersive sound.
- Design: Sleek black aesthetic with a reinforced PCIe slot.
Build your dream gaming PC with the perfect balance of price and performance—shop the MSI B650M GAMING WIFI today!
