MSI Crosshair 16 HX AI D2XWGKG Gaming Laptop Intel Core Ultra 7 255HX Grey 9S7-15P421-207
Gaming Laptop MSI Crosshair 16 HX AI D2XWGKG, Intel Core Ultra 7 255HX - Technical Specifications
Brand | MSI |
Model Name | Crosshair 16 HX AI D2XWGKG |
Model Number |
9S7-15P421-207 |
Processor |
Intel® Core Ultra 7 255HX, Arrow Lake Processor 20Cores (8P + 12E) / 20Threads Max Turbo up to 5.2GHz, 30MB |
Memory |
16GB (2 x 8GB) DDR5-6400, Max 96GB, 2 Slots |
Storage |
1TB PCIe® Gen4x4 NVMe™ M.2 SSD |
Graphics |
NVIDIA® GeForce RTX™ 5070 Laptop GPU 8GB GDDR7 powers advanced AI with 798 AI TOPS Up to 2347MHz Boost Clock 115W Maximum Graphics Power with Dynamic Boost. |
Display |
16” QHD+ (2560x1600), 240Hz, IPS-Level |
I/O ports |
1x Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) 3x Type-A USB3.2 Gen1 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) |
Keyboard |
24-Zone RGB Gaming Keyboard with Copilot Key |
Webcam |
HD type (30fps@720p) 3D Noise Reduction (3DNR) |
Audio |
2x 2W Speaker 1x Mic-in/Headphone-out Combo Jack |
Communications / Wireless |
Gb LAN 802.11 ax Wi-Fi 6E + Bluetooth v5.3 |
Security |
Firmware Trusted Platform Module(fTPM) 2.0 Webcam Shutter Kensington Lock |
Operating System |
Windows 11 Home |
Battery |
4-Cell 90 Battery (Whr) |
Power | 240W adapter |
Dimensions |
359 x 266.4 x 21.8-27.9 mm |
Weight |
2.5 kg |
Warranty | 2 Years warranty |
The MSI Crosshair 16 HX AI D2XWGKG is engineered for the discerning gamer and creator who demands next-level performance, AI acceleration, and an ultra-responsive display. This machine blends the revolutionary power of Intel's Core Ultra HX-series processor with the cutting-edge graphics and AI capabilities of the NVIDIA RTX 50-series, all housed in a sleek Cosmos Gray chassis.
Intel Core Ultra 7 255HX Processor: At its core, the Crosshair 16 HX AI features the formidable Intel® Core™ Ultra 7 255HX Processor. Built on the advanced Arrow Lake architecture, this CPU is designed to deliver desktop-level performance with a high-efficiency profile, featuring a 20-Core (8 Performance-cores and 12 Efficiency-cores) design and a Max Turbo Frequency of up to 5.2 GHz. Crucially, it integrates the Intel® AI Boost NPU (Neural Processing Unit), providing dedicated on-chip AI acceleration. This hardware enables a new era of AI-enhanced gaming, smarter multitasking, and greater power efficiency, keeping the system cooler and quieter even under extreme load.
NVIDIA GeForce RTX 5070 for Ultimate Graphics: Step into the future of gaming with the NVIDIA® GeForce RTX™ 5070 Laptop GPU with 8GB of ultra-fast GDDR7 memory. Powered by the NVIDIA Blackwell architecture, the RTX 5070 brings a monumental leap in performance and graphics fidelity. It is a true game-changer, equipped with up to 798 AI TOPS of dedicated AI horsepower, enabling next-generation features like DLSS 4 with Multi Frame Generation and advanced Ray Reconstruction. Experience cinematic, fully ray-traced graphics and massively multiplied frame rates for the most demanding AAA titles at high resolution. The GPU operates with a competitive Maximum Graphics Power of 115W (with Dynamic Boost) for peak performance.
Uncompromised Visuals and Speed
16-Inch QHD+ 240Hz Gaming Display: Gain a critical competitive advantage with the stunning 16-inch QHD+ (2560x1600) IPS-Level display. The 16:10 aspect ratio offers a taller, more immersive view of the battlefield, while the blistering 240Hz refresh rate and fast response time ensure pixel-perfect clarity with virtually zero motion blur or ghosting. With 100% DCI-P3 color coverage, this display is also perfect for professional creators who need color accuracy for video editing and graphic design.
Hyper-Efficient Memory and Storage: The laptop is equipped with 16GB of high-speed DDR5-6400 RAM (configured as 2x 8GB) for seamless multitasking and lightning-fast application launch times. Storage is handled by a rapid 1TB PCIe® Gen4x4 NVMe™ M.2 SSD, offering colossal read/write speeds to drastically reduce game loading screens and boot times. Furthermore, the system includes an additional M.2 slot that is PCIe Gen5 compatible, providing a pathway for a significant future storage upgrade.
Engineered for Victory
Advanced Cooler Boost 5 Technology: To maintain maximum performance from the powerful CPU and GPU, the Crosshair 16 HX AI utilizes MSI's proprietary Cooler Boost 5 thermal solution. This system features a sophisticated design with two dedicated fans and five total heat pipes, including a shared-pipe architecture that efficiently pulls heat away from both the processor and the graphics card. This guarantees that the system's combined power limit of up to 170W (with MSI OverBoost Technology) can be fully leveraged without thermal throttling.

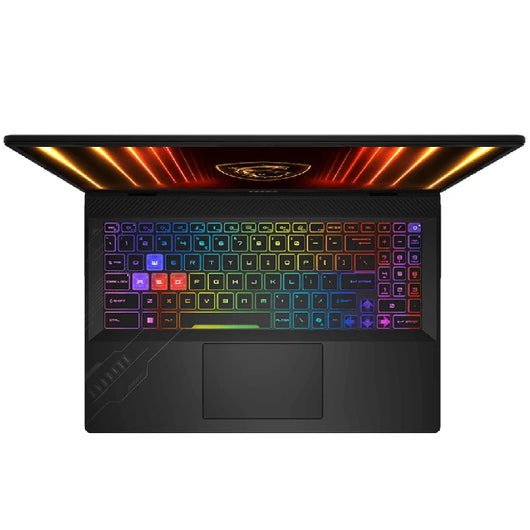

Premium Connectivity and Features: Running on Windows 11 Home, the system provides a modern, secure, and intuitive user interface. Connectivity is robust with an integrated Gigabit LAN port and cutting-edge Wi-Fi 6E (802.11ax) and Bluetooth v5.3. I/O ports include a versatile Thunderbolt™ 4 port (supporting DisplayPort™ and Power Delivery), a full-size HDMI™ 2.1 output capable of driving an 8K @ 60Hz or 4K @ 120Hz external display, and multiple USB Type-A ports. The 24-Zone RGB Gaming Keyboard allows for personalization and includes a dedicated Copilot Key for instant access to AI tools, blending a desktop-like typing and gaming experience with a sleek, portable design.
