Description

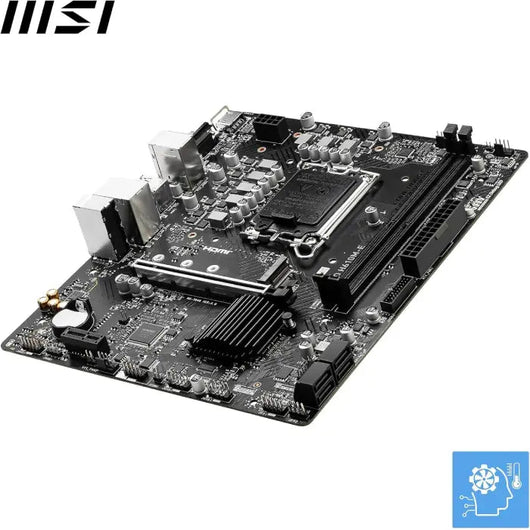

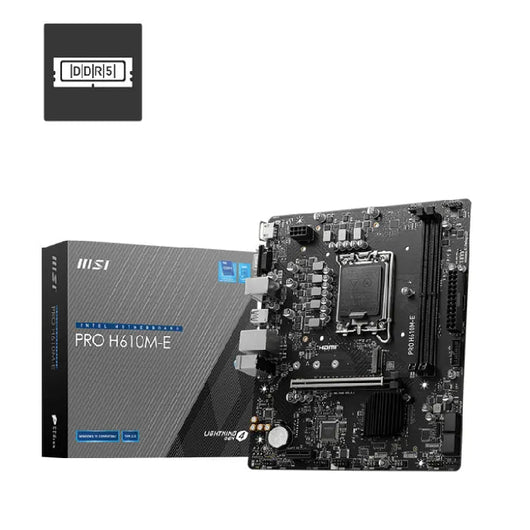

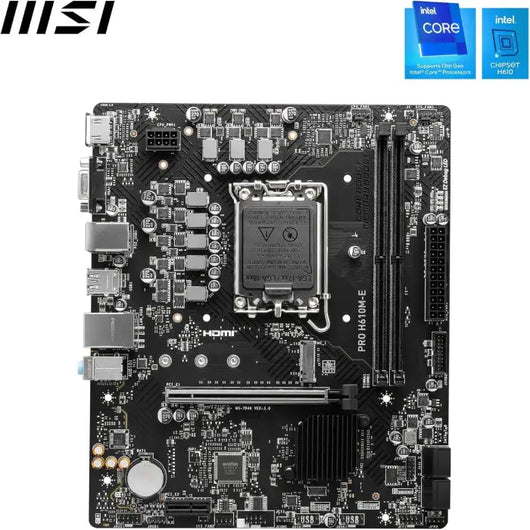

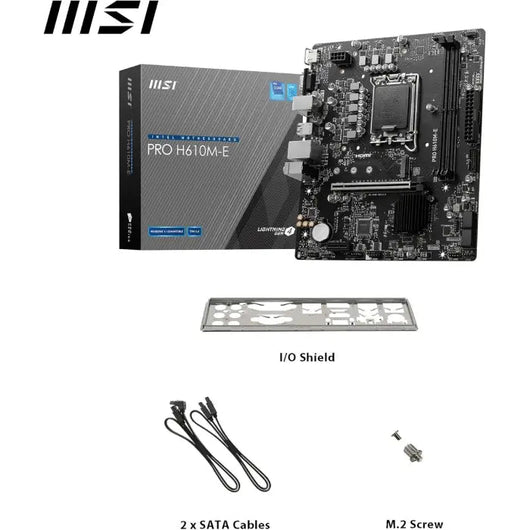

MSI INTEL PRO DDR5 H610M-E LGA1700 MB - Technical Specifications
| Brand | MSI |
| Model | PRO DDR5 H610M-E |
| Chipset |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory |

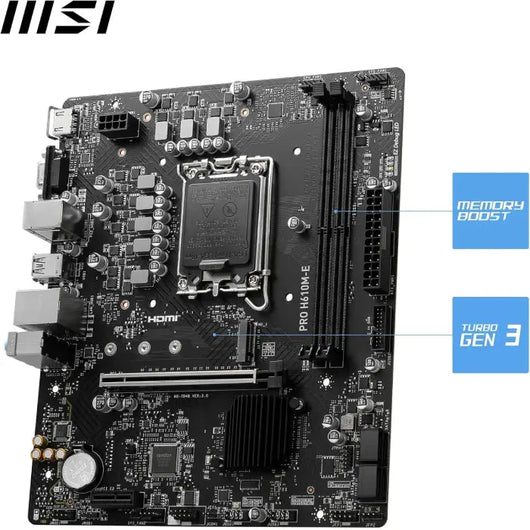

2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics |

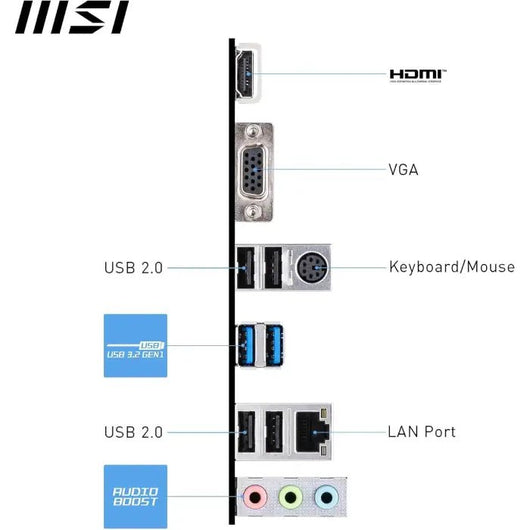

1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |

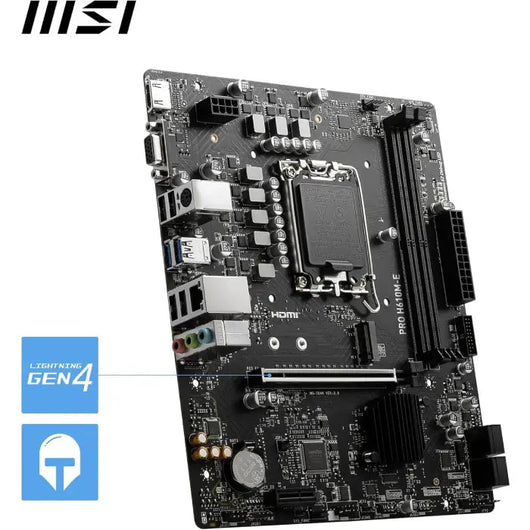

1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| USB |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |
MSI INTEL PRO DDR5 H610M-E LGA1700 Motherboard
