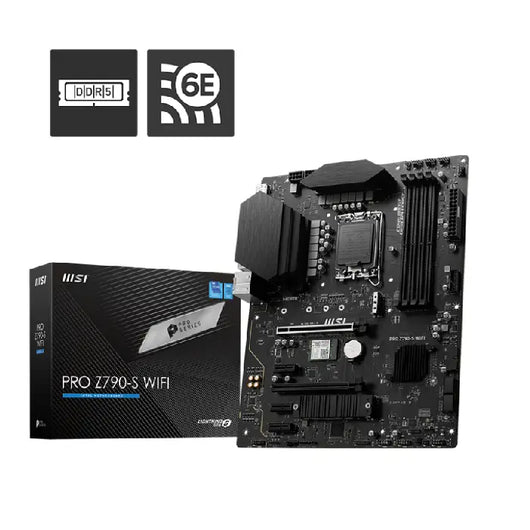

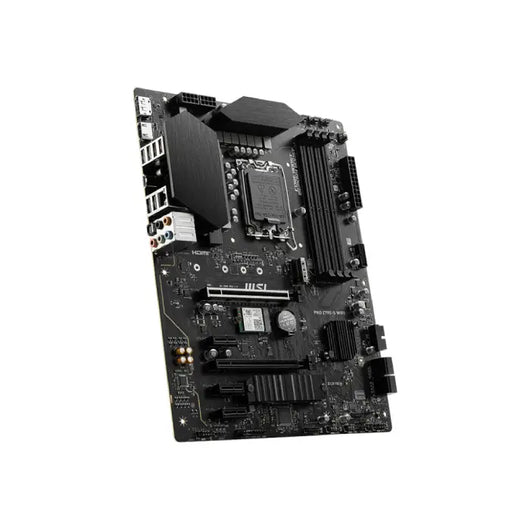

MSI PRO Z790-S WIFI DDR5 LGA 1700 Motherboard - Technical Specifications
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Socket | LGA 1700 |
| Chipset | INTEL Z790 |
| Memory |
4x DDR5, Maximum Memory Capacity 256GB Supports Intel® XMP 3.0 OC |
| Memory Channel | Dual |
| ONBOARD GRAPHICS |
1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* |
| SLOT |
2x PCI-E x16 slot 3x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| STORAGE |
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH |
Intel® Wi-Fi 6E Supports Bluetooth® 5.3, FIPS, FISMA |
| AUDIO |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| INTERNAL IO |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |

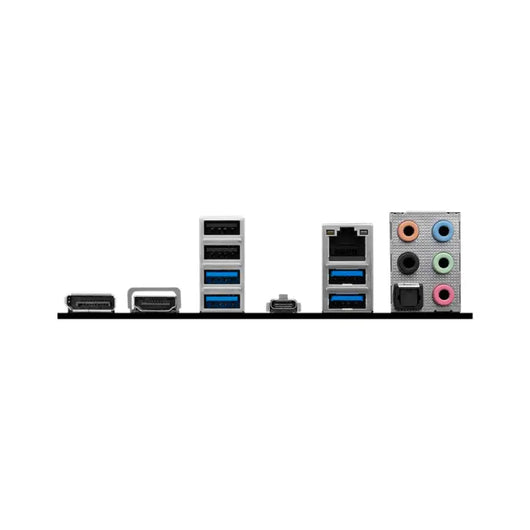

| BACK PANEL PORTS |
DisplayPort HDMI™ USB 2.0 USB 3.2 Gen 2x2 20Gbps (Type-C) 2.5G LAN Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) S/PDIF-OU |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO |
ATX 243.84mmx304.8mm |
Business Elegance & Peak Performance: MSI PRO Z790-S WIFI 🚀
The MSI PRO Z790-S WIFI is designed for professionals and creators who need a stable, high-performance foundation for their PC. Supporting Intel® Core™ 14th, 13th, and 12th Gen processors on the LGA 1700 socket, this motherboard combines a sleek, professional aesthetic with cutting-edge technology to handle demanding workloads and high-end gaming alike.
+1
Next-Gen Memory and Speed: Step into the future with DDR5 support, offering a massive boost in memory bandwidth and stability for multitasking and heavy rendering. The board also features a PCIe 5.0 x16 slot, ensuring your system is ready for the latest high-performance graphics cards with double the bandwidth of the previous generation.
Stay Connected: Equipped with the latest Wi-Fi 6E solution and 2.5G LAN, the PRO Z790-S WIFI provides lightning-fast data transfer speeds and a stable online experience, whether you're uploading large files or competing in online arenas.
Thermal Excellence: To maintain peak performance, MSI has integrated an extended heatsink design and M.2 Shield Frozr. These thermal solutions keep your VRMs and high-speed SSDs cool, preventing thermal throttling even during extended periods of heavy use.
Key Features:
- Socket: Intel® LGA 1700 (14th/13th/12th Gen Support)
- Memory: 4x DDR5 Slots (Dual Channel)
- Storage: High-speed M.2 slots with Shield Frozr protection
- Expansion: Lightning Gen 5 PCIe slot
- Networking: Wi-Fi 6E & 2.5G LAN for ultra-fast connectivity
- Internal Audio: Realtek® ALC897 Codec for high-definition sound
Build a smarter, faster system—shop the MSI PRO Z790-S WIFI Motherboard today!
