SWITCH-RUIJIE-RG-ES05-5-Port-10-100
Hurry up! Sale Ends in

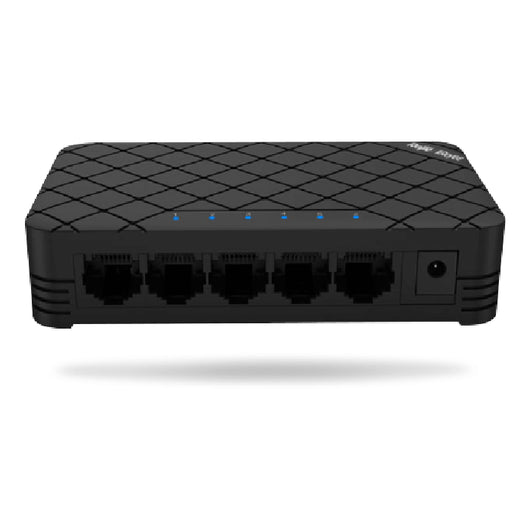

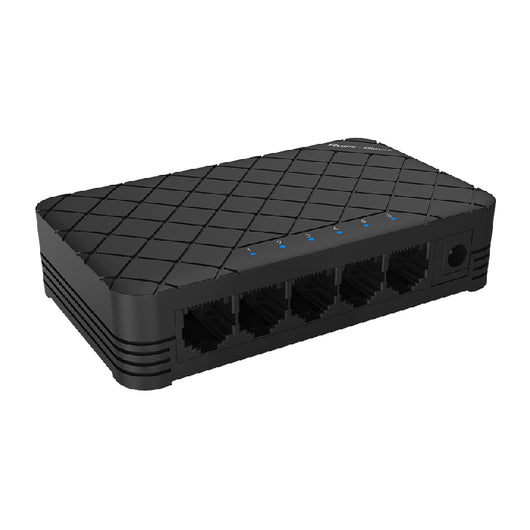

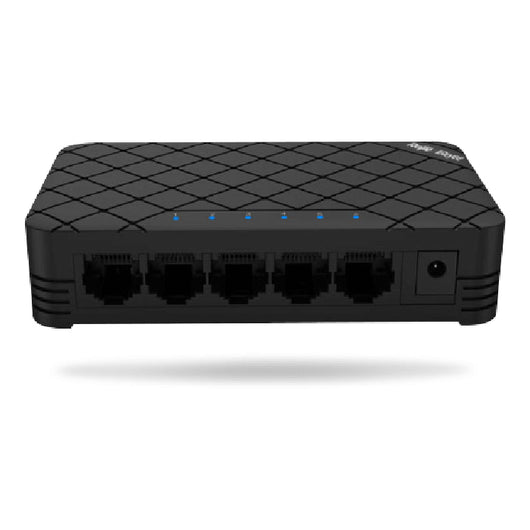

Ruijie RG-ES05 Unmanaged 5 Ports Adaptive Gigabit Switch - Technical Specifications
| Brand | Ruijie |
| Model | RG-ES05 |
| Ports | 5 10/100M Base-T ports |
| Operating mode |
Half-duplex, full-duplex, auto-negotiation mode Support auto MDI/MDIX |
| Backplane bandwidth | 1Gbps |
| Packet forwarding rate | 0.744Mpps |
| MAC address | 1K |
| Power supply | External, DC 5.0V / 600mA |
| Maximum power consumption | ≤2.5W |
| Fan | Fanless |
| Dimensions | 108.1mm*64mm*24.8mm |
| Temperature |
Operating temperature: 0 ℃ ~ 40 ℃ Storage temperature: -40 ℃ ~ 70 ℃ |
| Humidity |
Operating humidity: 10% ~ 90% RH Storage humidity: 5% ~ 95% RH |
Smart Performance, Simplified Management: Ruijie RG-ES209GC-P Gigabit PoE Switch 🚀
The Ruijie Reyee RG-ES209GC-P is a powerhouse 9-port Gigabit Smart Cloud Managed switch designed specifically to meet the high-bandwidth needs of small to medium-sized businesses and advanced CCTV networks. Combining high-speed data transfer with intelligent power delivery, this switch is the backbone of a reliable modern office or security setup.
+1
High-Power PoE+ and Gigabit Speed: Equipped with 9 10/100/1000Base-T ports, including 8 PoE+ ports, it provides a robust 120W total power budget. This allows you to power demanding devices like high-res IP cameras, VoIP phones, and Wireless Access Points directly through the ethernet cable, simplifying your cabling and reducing installation costs.
+1
Intelligent CCTV Integration: Engineered for surveillance, the RG-ES209GC-P features automatic IP camera recognition and automatic loop prevention. These features ensure your security feed stays online without manual intervention, even if a network loop occurs. It also supports 250-meter long-distance transmission and individual port reboots via the app.
+1
Effortless Cloud Management: Say goodbye to complex configurations. With Ruijie Cloud, you can perform zero-touch provisioning, monitor network statistics, and manage your VLANs from anywhere in the world via your smartphone or PC. Backed by a 3-year warranty, this fanless, silent switch offers enterprise-grade stability with total peace of mind.
+1
Key Features:
- Ports: 9 x Gigabit RJ45 (8 x PoE+ ports)
- PoE Budget: 120W (IEEE 802.3at / 802.3af)
- Management: Lifetime Free Cloud Management & Mobile App
- Special Features: IP Camera Recognition & Loop Prevention
- Design: Compact, fanless silent operation, 4kV surge protection
- Warranty: Professional 3-Year Warranty
Upgrade your infrastructure with the Ruijie RG-ES209GC-P for a smarter, faster, and more reliable network.
