Description

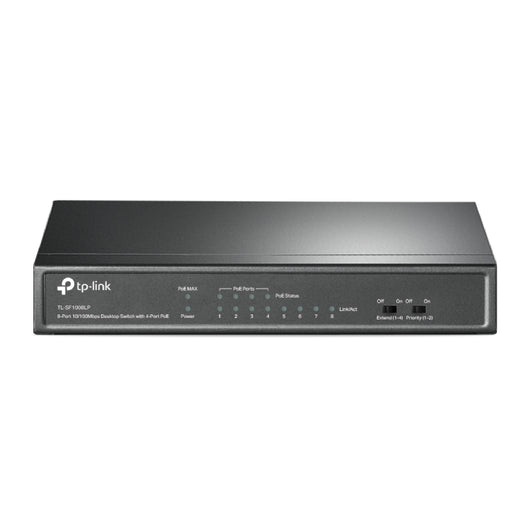

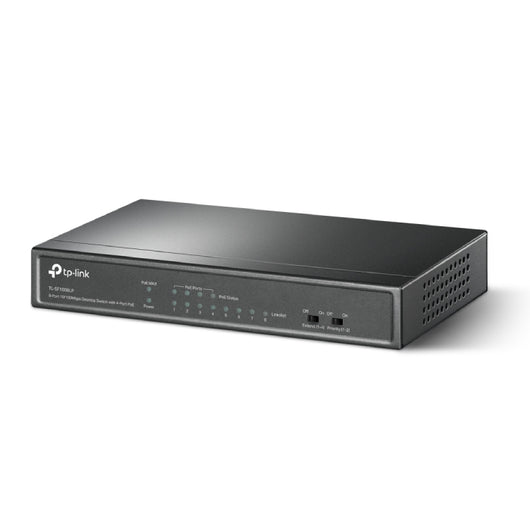

Tp-Link TL-SF1008LP 8-Port 10/100Mbps Desktop PoE 4-Port PoE Switch - Technical Specifications
| Brand | TP LINK |
| Model | TL-SF1008LP |
| Interface |
• 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX |
| Dimensions ( WxDxH) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Fan | Fanless |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 0.81 A |
| Packet Forwarding Rate | 1.1904 Mpps |

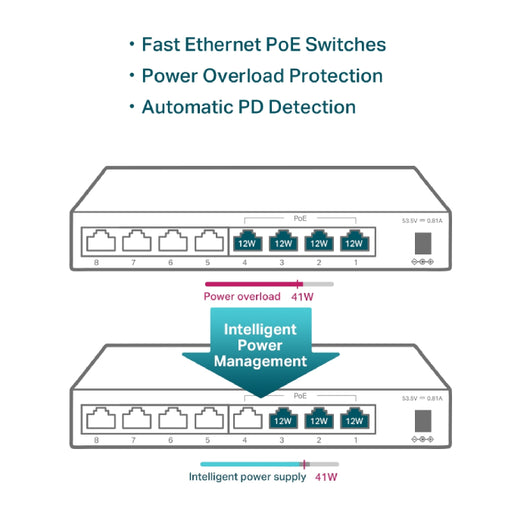

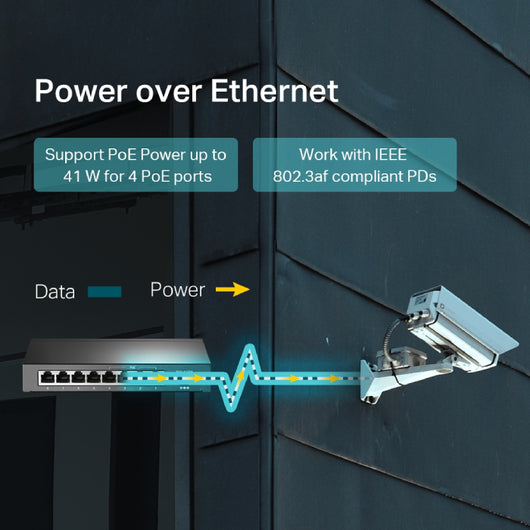

| PoE Ports (RJ45) |
• Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W |
| Mac Address Table | 2K |
| Max Power Consumption |
• 2.2 W (220 V/ 50 Hz. no PD connected) • 47.1 W (220 V/ 50 Hz. with 41 W PD connected) |
| Max Heat Dissipation |
• 7.5 BTU/h(no PD connected) • 160.61 BTU/h(with 41 W PD connected) |
| Transmission Method | Store-And-Forward |
| Advanced Functions |
• Compatible With IEEE 802.3af Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
(SWITCH-TP-Link-TL-SF1008LP-8-PORT-10/100Mbps DESKTOP SWITCH(yes
LE 1,750.00
