Description

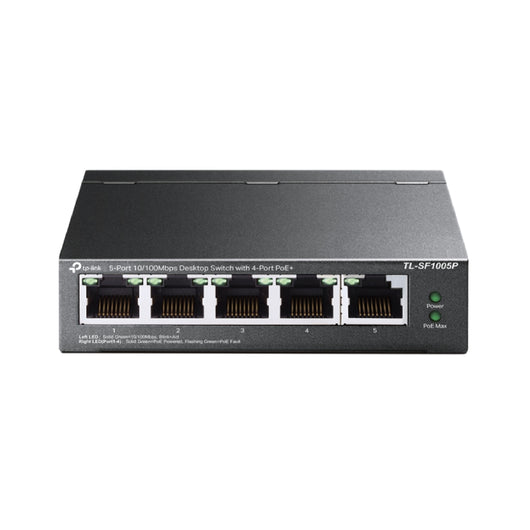

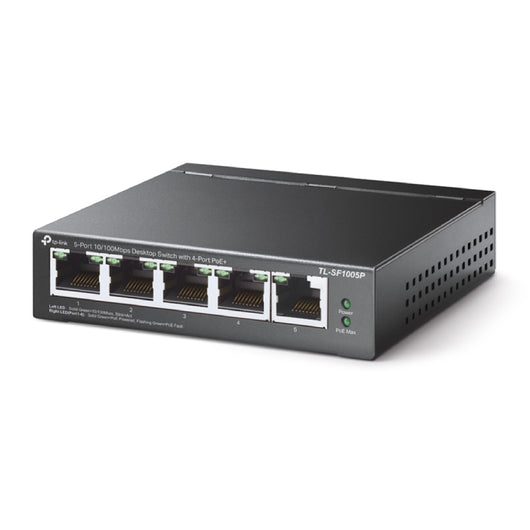

TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch - Technical Specifications
| Brand | TP LINK |
| Model | TL-SF1005P |
| Interface |
• 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX |
| Dimensions ( WxDxH) | 3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm) |
| Fan | Fanless |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Physical Security Lock | Yes |

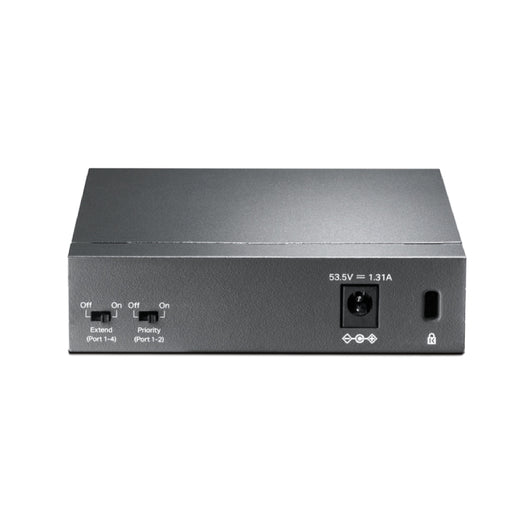

| External Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| Packet Forwarding Rate | 0.744 Mpps |
| PoE Ports (RJ45) |

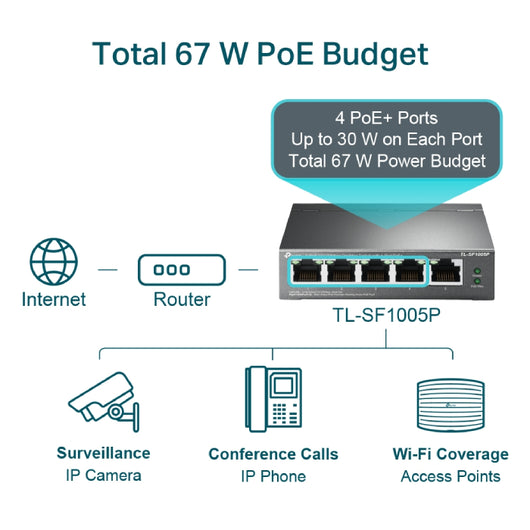

• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W |
| Mac Address Table | 2K |
| Max Power Consumption |
• 1.9 W (220 V / 50 Hz, no PD connected) • 74 W (220 V / 50 Hz, with 67 W PD connected) |
| Max Heat Dissipation |
• 6.48 BTU/h(no PD connected) • 252.34 BTU/h(with 67 W PD connected) |
| Transmission Method | Store-And-Forward |
| Advanced Functions |

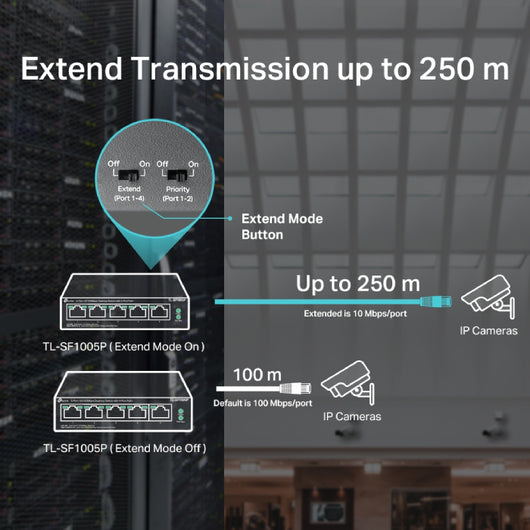

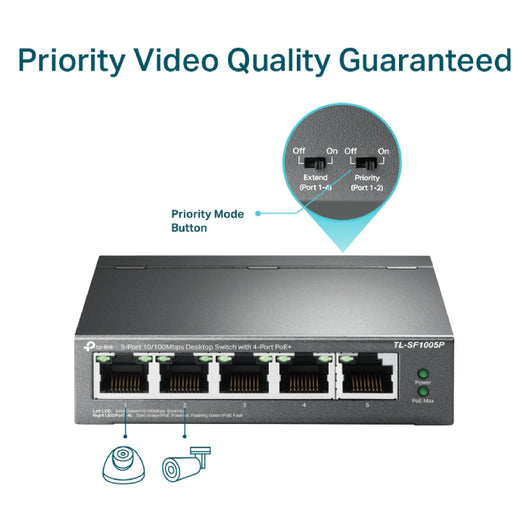

• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch 4-Port PoE+
LE 1,650.00
