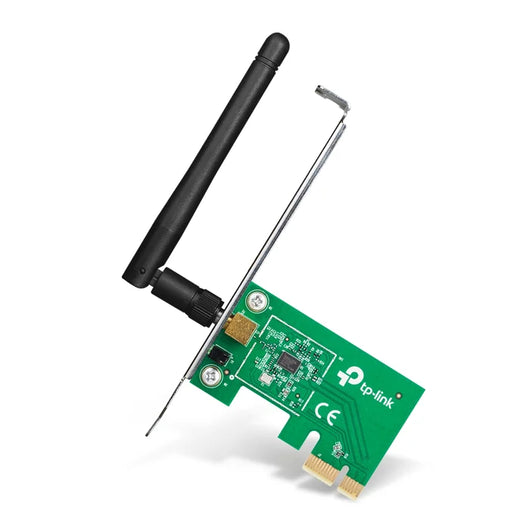

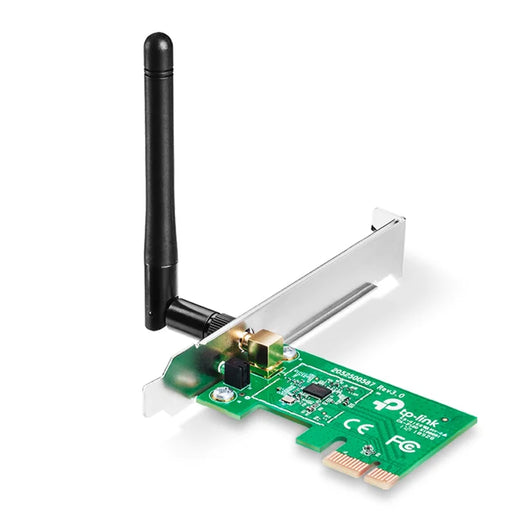

TP-Link TL-WN781ND 150Mbps Wireless N PCI Express Adapter - Technical Specifications
| Brand | TP-LINK |
| Model | TL-WN781ND |
| Hardware Features | |
| Interface | PCI Express |
| Dimensions ( W x D x H ) | (120.8 x 78.5 x 21.5mm) |

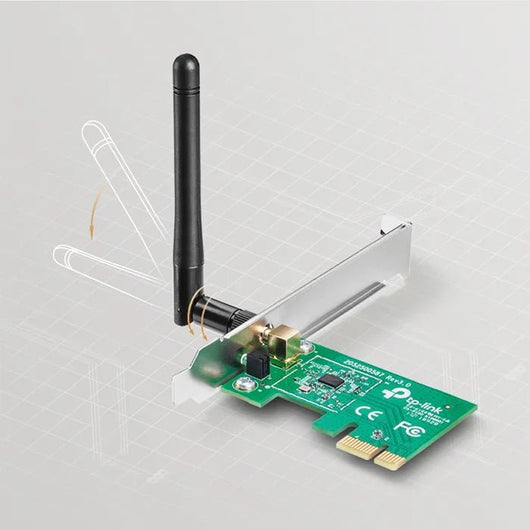

| Antenna | Detachable Omni Directional (RP-SMA) |
| Wireless Features | |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.400-2.4835GHz |
| Signal Rate |
11n: Up to 150Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity |
130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Transmit Power | <20dBm(EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Antenna Gain | 2dBi |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents |
Wireless Adapter Detachable Omni directional antenna Resource CD Quick Installation Guide |
| System Requirements | Windows XP/Vista/7/8/8.1/10(32/64bits) |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TP-Link TL-WN781ND 150Mbps Wireless N PCI Express Adapter
LE 625.00
