Description

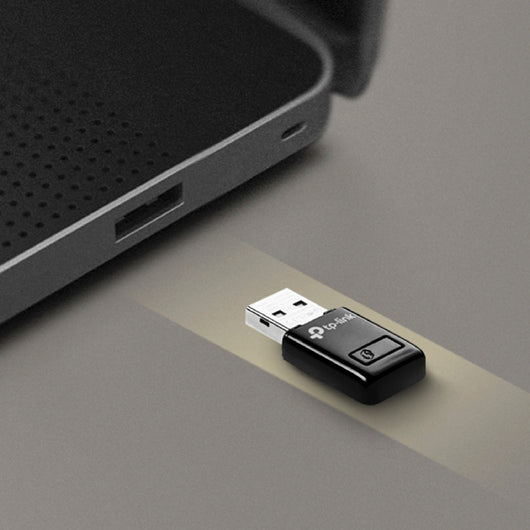

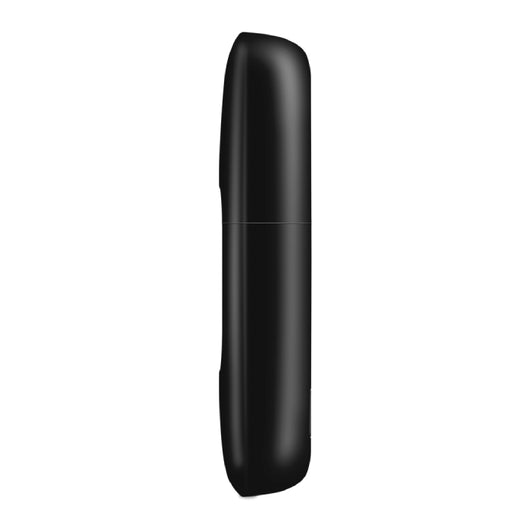

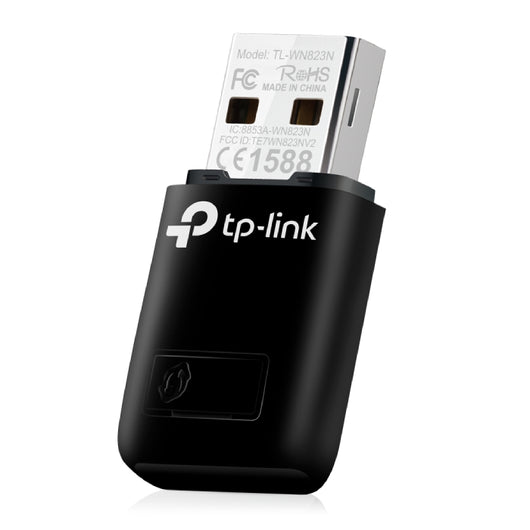

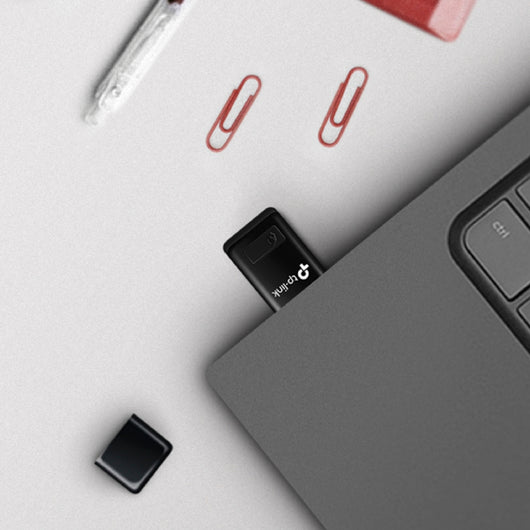

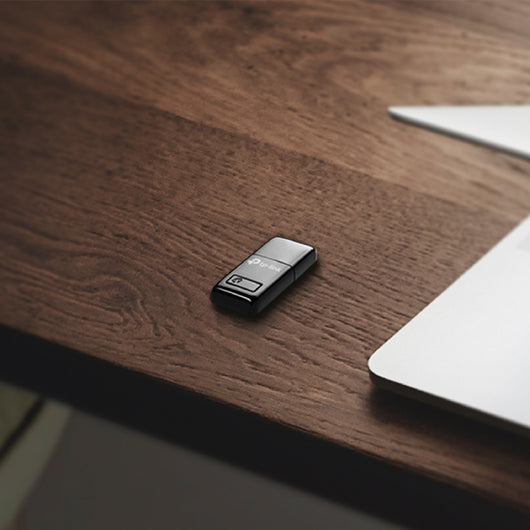

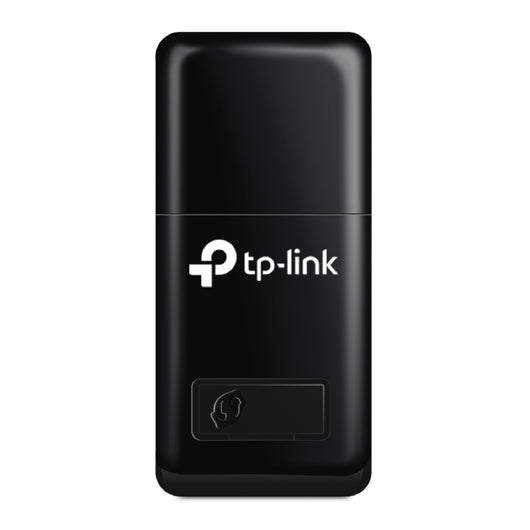

TP-LINK TL-WN823N 300Mbps Mini Wireless N USB Adapter - Technical Specifications
| Brand | TP-LINK |
| Model | TL-WN823N |
| Hardware Features | |
| Interface | USB 2.0 |
| Button | Wi-Fi Protected Setup (WPS) Button |
| Dimensions (W x D x H) | 1.54 x 0.72 x 0.31 in. (39 x 18.35 x 7.87mm) |
| Antenna Type | Internal |
| Wireless Features | |
| Wireless Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency | 2.400~2.4835GHz |
| Signal Rate |
11b: Up to 11Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11n: Up to 300Mbps(dynamic) |
| Reception Sensitivity |
300M: -65dBm@10% PER 270M: -65dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -72dBm@10% PER 11M: -85dBm@8% PER 6M: -87dBm@10% PER 1M:-93dBm@8% PER |
| Transmit Power | <20dBm (EIRP) |
| Wireless Modes |
Soft AP Mode Client Mode (support Ad-hoc/Infrastructure network) |
| Wireless Security |
64/128-bit WEP WPA-PSK / WPA2-PSK WPA / WPA2 |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Others | |
| Certification | CE, FCC, IC, RoHS |
| Package Contents |
Wireless Adapter TL-WN823N Resource CD Quick Installation Guide |
| System Requirements |
Windows XP/7/8/8.1(32/64bits) Mac OS X 10.6-10.11, Linux |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TP-LINK TL-WN823N 300Mbps Mini Wireless N USB Adapter
LE 575.00
